Install Hitch Arms and Hitch

NOTE: Left-hand hitch arm has mounting tabs for offset cylinder. Installation procedures are the same for both.

1. Apply multipurpose grease to pivot post (C).

2. Install hitch arm (D) with lubrication fitting (E) facing toward center of machine.

3. Install 71 x 89 x 50 mm bushing (B), M20 x 100 mm cap screw (A) and lock nut.

4. Repeat on left-hand side.


A-Cap Screw, M20 x 100 mm
B-Bushing
C-Pivot Post
D-Hitch Arm
E-Lubrication Fitting

W03477

Right-Hand Side Shown

AG,OUMX005,987 -19-09JUL99-1/3


W03478

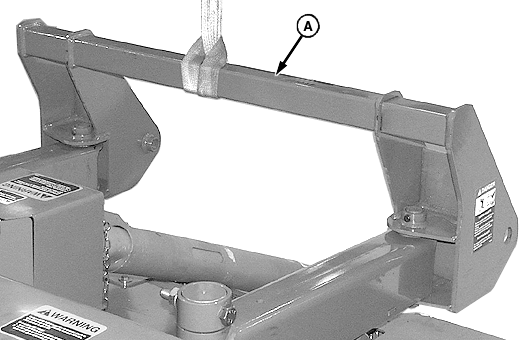

A-Hitch



5. Wrap a lifting strap around hitch (A) and attach to a hoist.

6. Position hitch over arms as shown.

AG,OUMX005,987 -19-09JUL99-2/3


7. Apply multipurpose grease to 35 x 202 mm pins (A).

8. Align holes in hitch and arms and install pins using a brass drift and hammer.

9. Install 10 x 58 mm drilled pins (B) and 3.2 x 25 mm cotter pins.

10. Remove lifting strap.

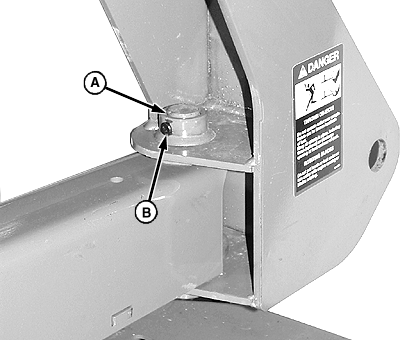

A-Pin, 35 x 202 mm (2 used)
B-Drilled Pin, 10 x 58 mm (2 used)

W03479

Right-Hand Side Shown
