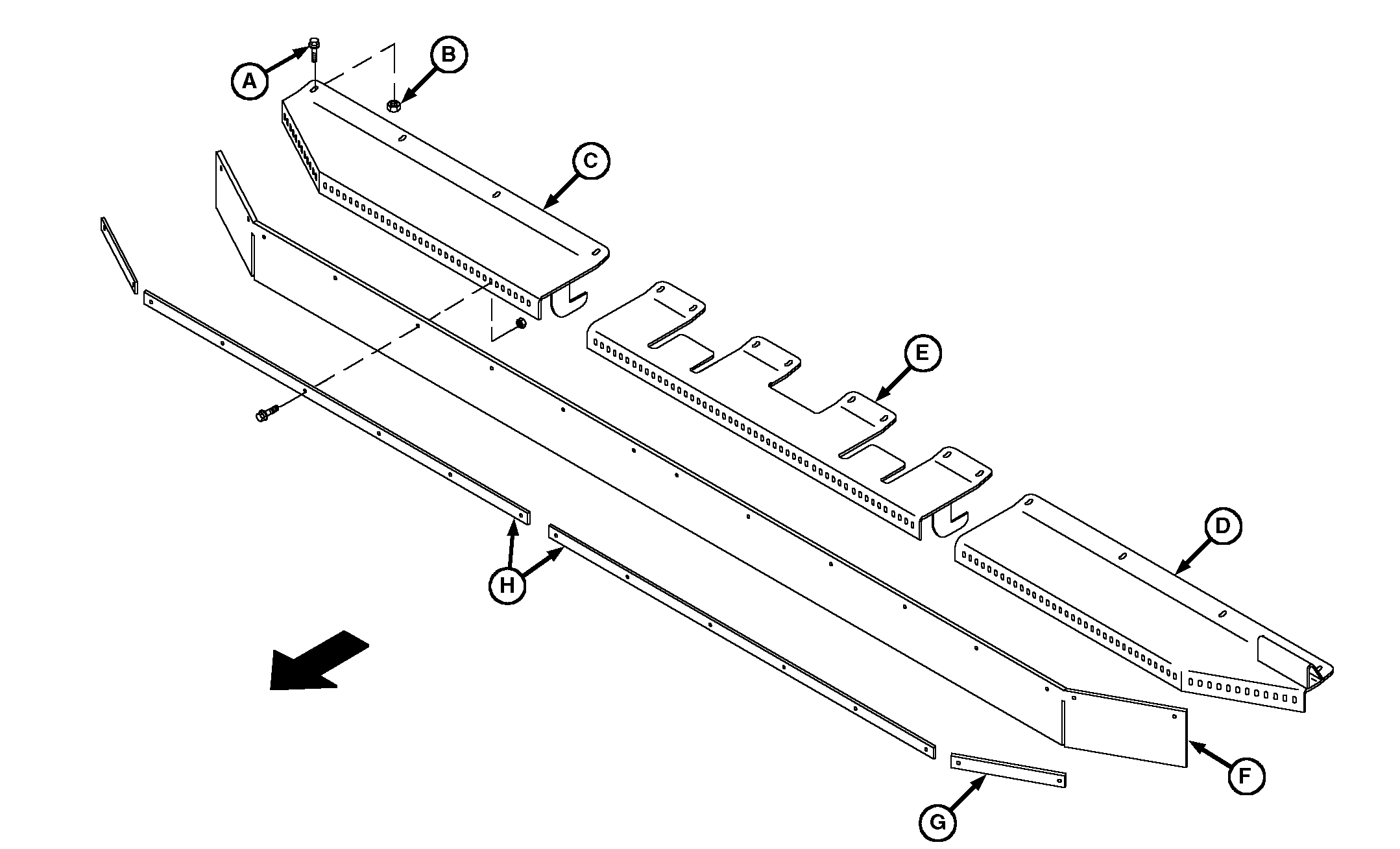

A-Flange Head Cap Screw, M10 x 30 mm (32 used)
B-Lock Nut, M10 (32 used)

C-Right-Hand Shield
D-Left-Hand Shield
E-Center Shield

F-Rubber Deflector
G-Strap, 6.35 x 38 x 364 mm (2 used)

H-Strap, 6.35 x 38 x 1736 mm (2 used)

Tighten all shield mounting hardware AFTER all shields have been installed.

AG,OUO1078,250 -19-10NOV99-1/1
