Servicing Tractor-410 Loader

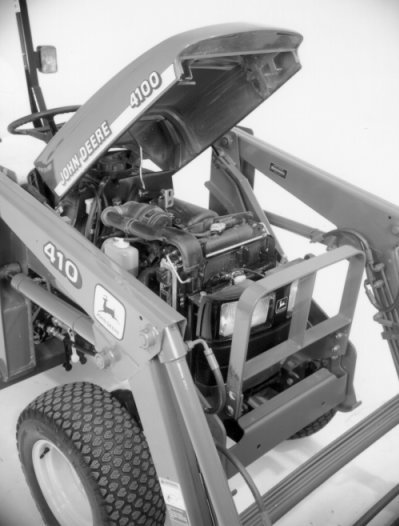

Hood guard on 410 Loader does not interfere with access to the 4100 Tractor engine compartment for servicing.

NOTE: Latch plate retainer interferes with tractor front grille when removing battery. Grille removal is not necessary to check battery fluid level or boost.

Remove latch plate retainer and tractor front grille to remove battery.

W02685

OUMX005,00013BA -19-16APR01-1/3

When reinstalling latch plate retainer, make sure all parts are installed correctly, as shown.

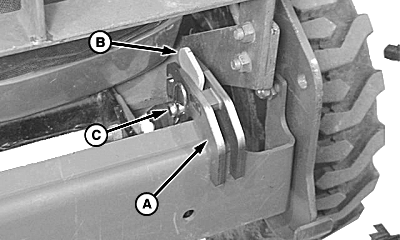

1. Install latch plate retainer (A) over latch plate and tractor frame. Insert spacer (B) between retainer and inside surface of tractor frame.
It may be necessary to push rearward on front latch plate when inserting headed pin (C). 2. Attach latch plate retainer and spacer to tractor frame using 16 x 45 mm (0.625 x 1.77 in.) headed pin (C) and spring pin.

W03919


A-Latch Plate Retainer
B-Spacer
C-Pin, 16 x 45 mm (0.625 x 1.77 in.)

OUMX005,00013BA -19-16APR01-2/3

3.

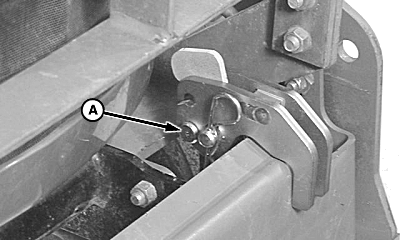

Insert 12 x 50 mm (0.5 x 2 in.) pin (A) through middle holes of latch retainer and install spring pin.


A-Pin, 12 x 50 mm (0.5 x 2 in.)

W03920
