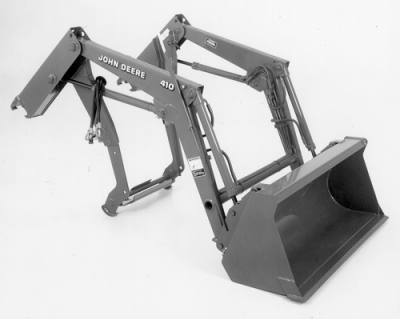

Storing Loader

1. Remove loader. (See Detaching Loader section.)

2. Clean loader thoroughly. Dirt attracts moisture which causes rust.

3. Paint where required.

4. Replace missing or damaged parts including hoses, hardware and decals.

5. If possible, store loader in a dry place.

6. Coat exposed cylinder rods with moly grease to prevent rust.

7. Be sure dust covers are on hose ends.

8. Store hoses on lift cylinder, NOT on the ground.

9. Lubricate complete machine. (See Lubrication and Maintenance section.)

OUO1078,0000049 -19-19DEC00-1/1
