Removing Front Weights

IMPORTANT: To prevent interference with loader, remove all weights.

NOTE: Front weight bracket "EXTENSIONS" are "NOT" compatible with the loader.

Remove all front weights.

IMPORTANT: Front weight bracket MUST NOT be bent or damaged in any way. Replace if necessary.

The weight bracket is required for installation of loader and must remain on tractor.

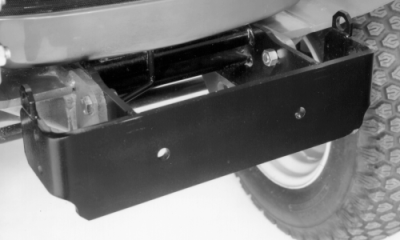

W02674

4100 Tractor Shown

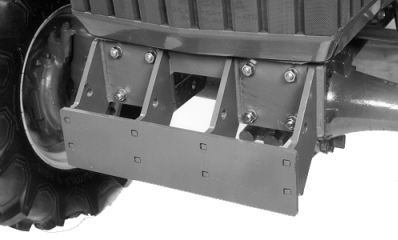

W02972

870 Tractor

OUO1078,0000064 -19-11JAN01-1/1
