Attaching Loader

1. Drive tractor slowly, straight into loader.

2. Align masts with rear frames.

3. Engage tractor parking brake and/or place transmission in "Park".

4. Shut off tractor engine and remove key.

W02932

OUO1078,0000077 -19-11JAN01-1/9

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system. Move control levers back and forth and side-to-side (if applicable) several times.

5. Relieve system pressure.

X9811

OUO1078,0000077 -19-11JAN01-2/9

6. Connect colored couplers on hoses matching numbers and/or colors on decal by coupler plate.

Colored Couplers on Hose Couplers Colors on Coupler Plate
Red or Silver (Head-End Bucket Cylinder) Silver (Port No. 2)
Yellow (Rod-End Bucket Cylinder) Yellow (Port No. 1)
Green (Head-End Lift Cylinder) Green (Port No. 4)
Black (Rod-End Lift Cylinder) Black (Port No. 3)


W02677

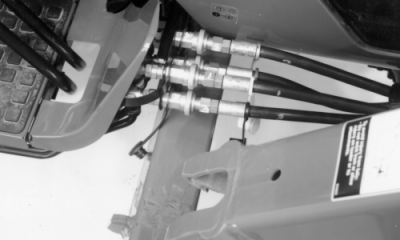

4100 Tractor

W04303

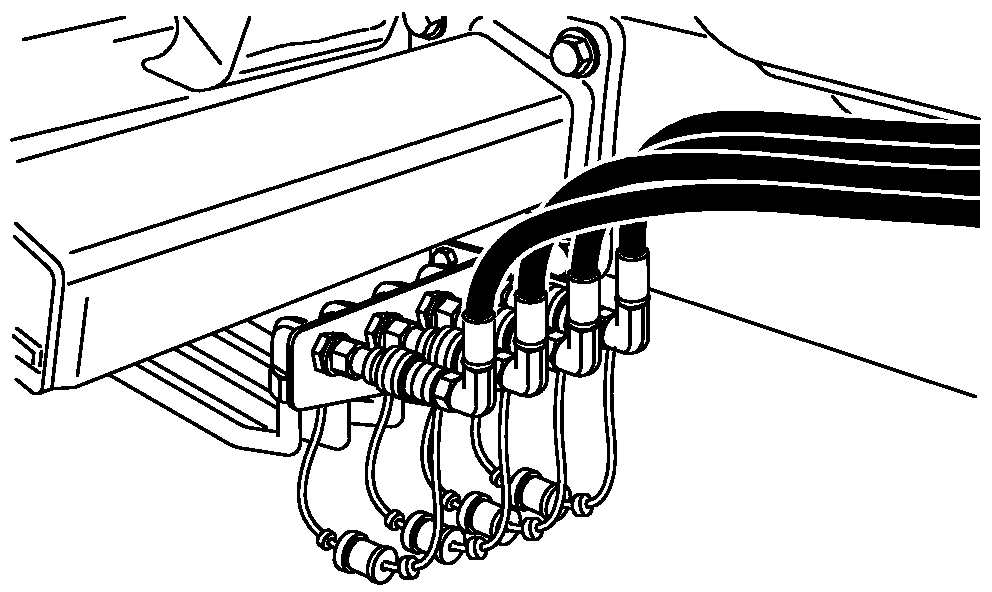

4200, 4300 and 4400 Tractor

W02961

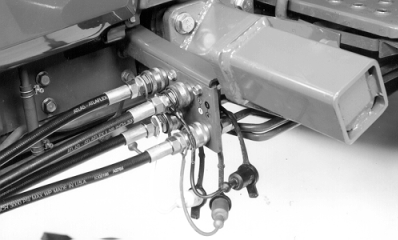

870 Tractor (Left-Hand Side)

OUO1078,0000077 -19-11JAN01-3/9

NOTE: It may be necessary to drive tractor forward slowly to keep masts/frames in line when doing the following procedures.

7. Slowly retract lift cylinders. Masts will lower into mounting frames.

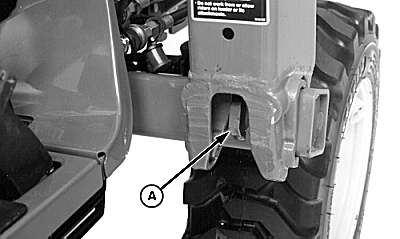

8. Be sure notches in bottom of masts align with tab (A) on each mounting frame.


A-Tab

W03997

OUO1078,0000077 -19-11JAN01-4/9

NOTE: Latch plate retainer removed for photographic purposes only.

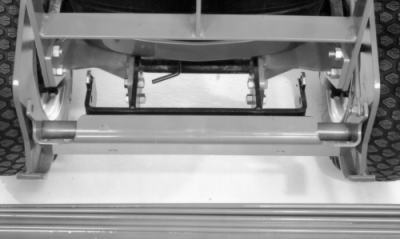

9. Fully retract lift cylinders raising front wheels slightly off ground.

10. Parking stand will raise into front weight bracket.

11. Check to be sure that lock plate has risen fully and is tight against bottom of front weight bracket.

W02678

OUO1078,0000077 -19-11JAN01-5/9

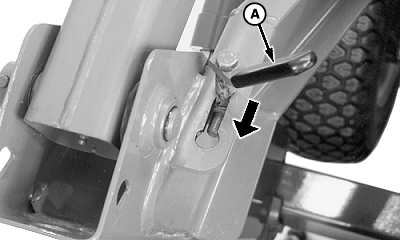

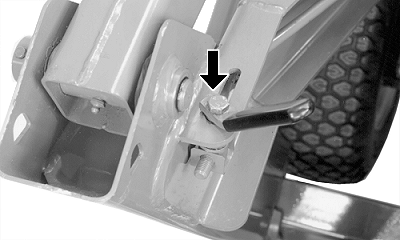

12. Pull rearward on latch handle (A). Handle will drop down in hole.

NOTE: If handle does not drop into hole freely, adjustment of latch rod may be necessary. (See CHECKING AND ADJUSTING LATCH PLATE AND LOCKING LEVER in Service section.)


A-Latch

W02900
W02907

OUO1078,0000077 -19-11JAN01-6/9

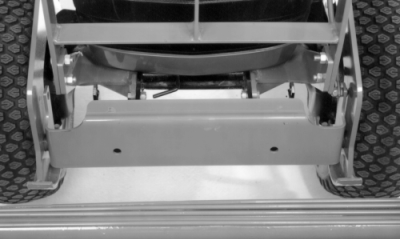

NOTE: Latch plate retainer removed for photographic purposes only.

13. Pulling back and latch handle dropping down, will lock plate over front weight bracket.

IMPORTANT: To help prevent damage to loader and/or tractor, be sure lock plate is fully engaged, this plate holds front of loader onto tractor.

14. Check to be sure lock plate is "FULLY" engaged.

15. If lock plate cannot be engaged, see Service section for adjustments.

16. Engage tractor parking brake and/or place transmission in "Park".

17. Shut off tractor engine and remove key.

W02679

OUO1078,0000077 -19-11JAN01-7/9

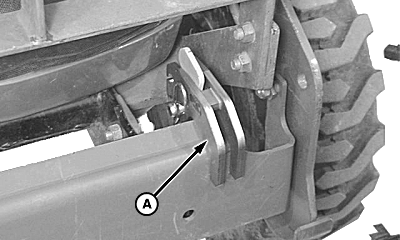

18. Lower latch plate retainer (A) as shown. Fasten with pin and spring pin.


A-Latch Plate Retainer

W04136

OUO1078,0000077 -19-11JAN01-8/9

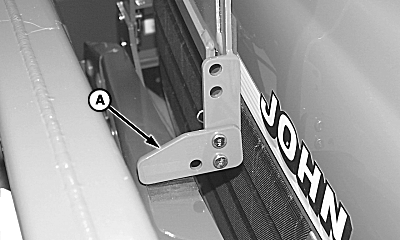

19. 420; If equipped with XTRA ARMOR™ Hood Guard, lower latch (A), as shown, on both sides.


A-Latch

W04134

Left-Hand Side Shown

OUO1078,0000077 -19-11JAN01-9/9
