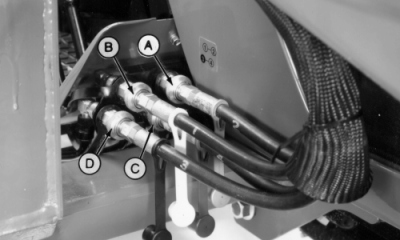

Identify hoses by installing colored dust covers on end of hoses.
Ports on plate that holds couplers on tractor are identified by both numbers and colors.
A-Silver (Head-End Bucket Cyl) Port No. 2 Silver B-Yellow (Rod-End Bucket Cyl) Port No. 1 Yellow C-Green (Head-End Lift Cyl) Port No. 4 Green D-Black (Rod-End Lift Cyl) Port No. 3 Black
OUO1078,00000A0 -19-11JAN01-1/1
