Hose Identification-420 Loader/870, 855 and 955 Tractors

NOTE: Hose with RED dust cover attaches to PORT No. 2 which is SILVER.

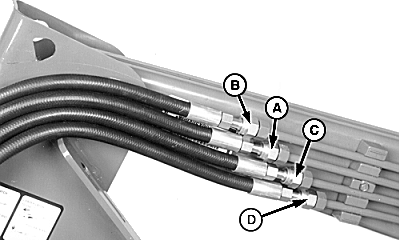

Identify hoses by installing colored dust covers on end of hoses.

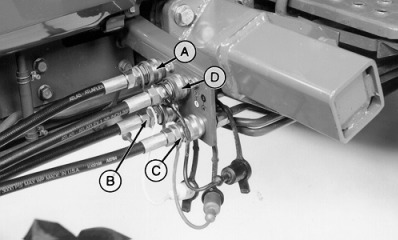

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

A-Red (Head-End Bucket Cyl) Port No. 2 Silver
B-Yellow (Rod-End Bucket Cyl) Port No. 1 Yellow
C-Green (Head-End Lift Cyl) Port No. 4 Green
D-Black (Rod-End Lift Cyl) Port No. 3 Black

OUO1078,00000A2 -19-11JAN01-1/1
