Preparing to Attach Loader

causym CAUTION: To help prevent personal injury from tractor instability, be sure to prepare tractor for loader operation as outlined in Preparing the Tractor section. Be sure to attach ballast box before attempting to attach loader.

1. Attach ballast box (A) and be sure tractor is prepared for loader operation.


A-Ballast Box

W02930

OUMX005,000138F -19-05MAR01-1/4

2. Check loader for any damaged or missing parts.

3. Be sure all hydraulic fittings on loader and tractor are free of dirt.

W02954

OUMX005,000138F -19-05MAR01-2/4

IMPORTANT: Make sure all latches are in correct position.

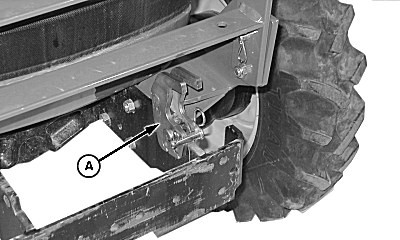

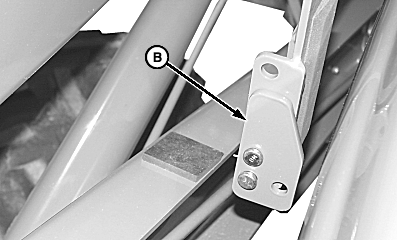

4. Make sure latches (A and B), if equipped, are UP, as shown.


A-Latch Plate Retainer
B-Latch

W04150

Latch Plate Retainer

W04152

XTRA ARMOR™ Hood Guard (If Equipped)

OUMX005,000138F -19-05MAR01-3/4

NOTE: Latch (A) on 990, 970 and 1070 Tractors is by right-hand mast. 4000 Series tractor shown.

5. Loader latch (A) should be unlatched and pushed forward.


A-Latch

W02699
W02906
