First 10 and Every 50 Hours of Use

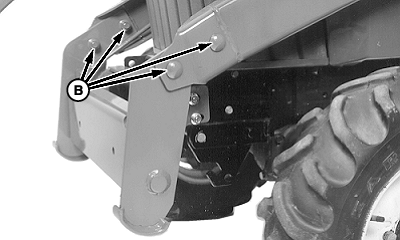

Tighten Mounting Frame Hardware

Tighten M16 hardware (A and B) to specifications.

Specification

Hardware -Torque 225 N·m (166 lb-ft)


A-Hardware
B-Hardware

W02963

990, 970 and 1070 Tractor

W02990

4000 Series Tractors

W02943

OUMX005,0001391 -19-05MAR01-1/2

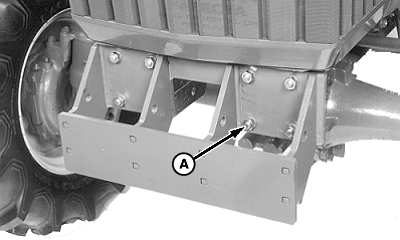

Check Front Weight Bracket Hardware (430 Loader on 990, 970 and 1070 Tractor)

Tighten M12 hardware (A) to specifications.

Specification

Hardware -Torque 140 N·m (105 lb-ft)


A-Hardware

W02971

OUMX005,0001391 -19-05MAR01-2/2
