Attaching Loader

1. Drive tractor slowly, straight into loader.

2. Align masts with rear frames.

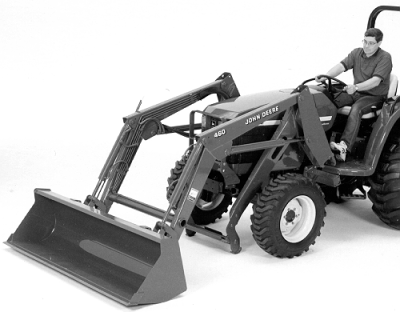

W02953

OUO6038,0000235 -19-14DEC00-1/10

3. 460 Loader only; Drive tractor forward until front axle contacts plates (A).

4. Engage tractor parking brake and/or place transmission in "Park".

5. Shut off tractor engine and remove key.


A-Plate

W01113

460 Loader (Left-Hand Side Shown)

OUO6038,0000235 -19-14DEC00-2/10

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system. Move control levers back and forth and side-to-side (if applicable) several times.

6. Relieve system pressure.

X9811

OUO6038,0000235 -19-14DEC00-3/10

7. Connect colored couplers on hoses matching numbers and/or colors on decal by coupler plate.

Colored Couplers on Hose Couplers Colors on Coupler Plate
Red or Silver (Head-End Bucket Cylinder) Silver (Port No. 2)
Yellow (Rod-End Bucket Cylinder) Yellow (Port No. 1)
Green (Head-End Lift Cylinder) Green (Port No. 4)
Black (Rod-End Lift Cylinder) Black (Port No. 3)
Optional Third Function
Orange (Head-End Cylinder) Orange
Blue (Rod-End Cylinder) Blue

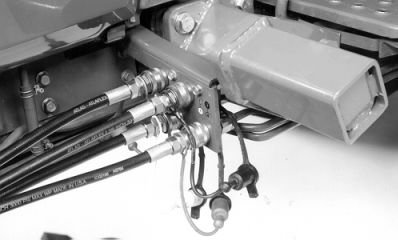

W02961

990, 970 and 1070 Tractor

W04303

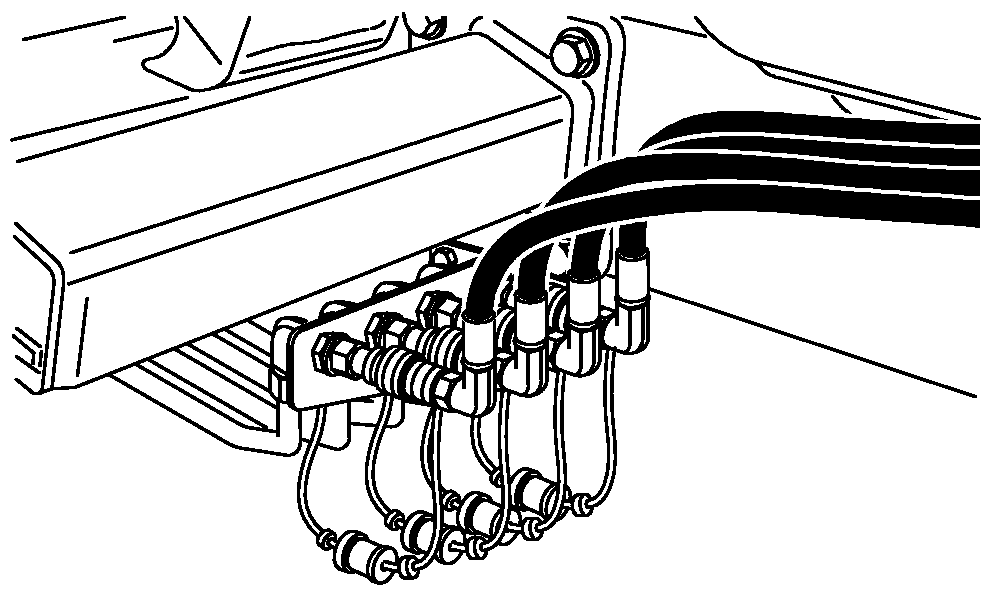

4300 and 4400 Tractor

W02989

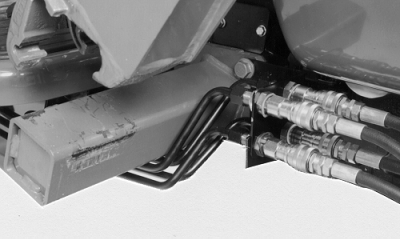

4500, 4600 and 4700 Tractor

OUO6038,0000235 -19-14DEC00-4/10

NOTE: It may be necessary to drive tractor forward slowly to keep masts/frames in line when doing the following procedures.

8. Slowly retract lift cylinders. Masts will lower into mounting frames.

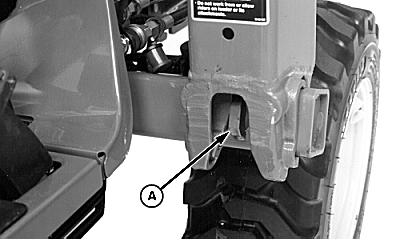

9. Be sure notches in bottom of masts align with tab (A) on each mounting frame.


A-Tab

W03997

OUO6038,0000235 -19-14DEC00-5/10

NOTE: Latch plate retainer removed for photographic purposes only.

10. Fully retract lift cylinders raising front wheels slightly off ground.

11. Parking stand will raise into front weight bracket.

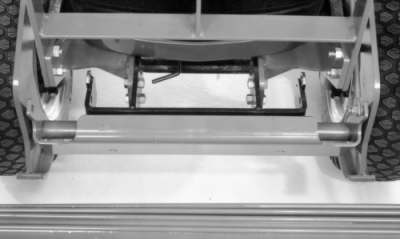

12. Check to be sure that lock plate has risen fully and is tight against bottom of front weight bracket.

W02678

OUO6038,0000235 -19-14DEC00-6/10

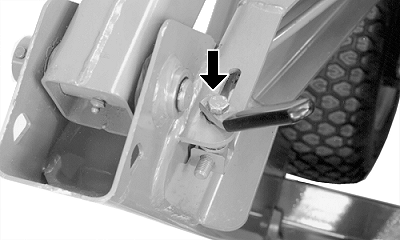

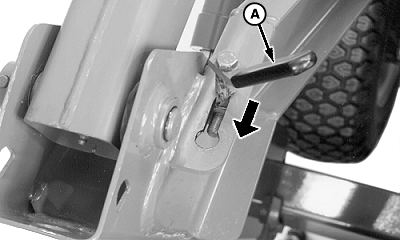

13. Pull rearward on latch handle (A) and handle will drop down in hole.

NOTE: If handle does not drop into hole freely, adjustment of latch rod may be necessary. (See CHECKING AND ADJUSTING LATCH PLATE AND LOCKING LEVER in Service section.)


A-Latch Handle

W02900
W02907

OUO6038,0000235 -19-14DEC00-7/10

NOTE: Latch plate retainer removed for photographic purposes only.

14. Pulling back and latch handle dropping down will lock plate over front weight bracket.

IMPORTANT: To help prevent damage to loader and/or tractor, be sure lock plate is fully engaged, this plate holds front of loader onto tractor.

15. Check to be sure lock plate is "FULLY" engaged.

16. If lock plate cannot be engaged, see Service section for adjustments.

17. Engage tractor parking brake and/or place transmission in "Park".

18. Shut off tractor engine and remove key.

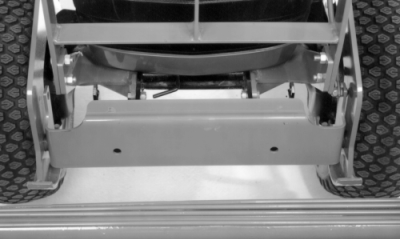

W02679

OUO6038,0000235 -19-14DEC00-8/10

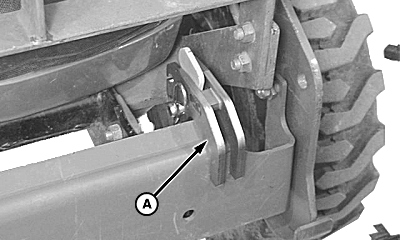

19. Lower latch plate retainer (A) as shown. Fasten with pin and spring pin.


A-Latch Plate Retainer

W04136

OUO6038,0000235 -19-14DEC00-9/10

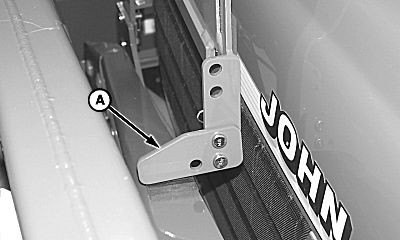

20. If equipped with XTRA ARMOR™ Hood Guard; Lower latch (A), as shown, on both sides.


A-Latch

W04134

Left-Hand Side Shown

OUO6038,0000235 -19-14DEC00-10/10
