Hose Identification-430 and 460 Loader/4000 Tractors
Identify hoses by installing colored dust covers on end of hoses.

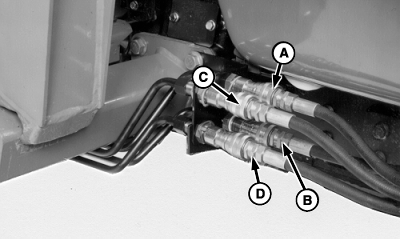

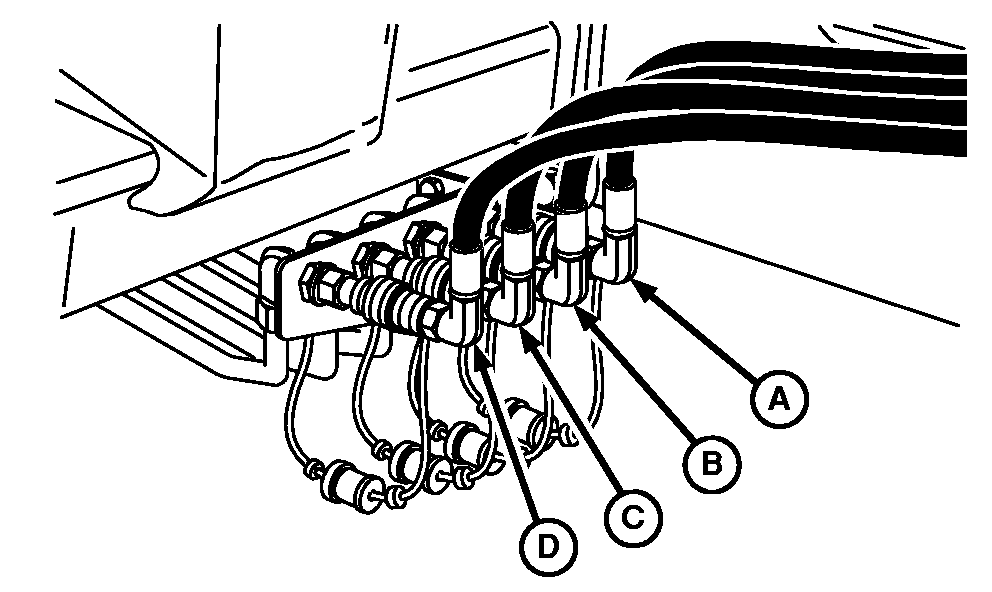

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

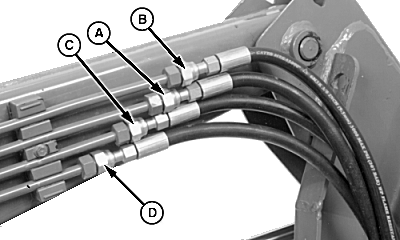

A-Red (Head-End Bucket Cyl) Port No. 2 Silver or Red
B-Yellow (Rod-End Bucket Cyl) Port No. 1 Yellow
C-Green (Head-End Lift Cyl) Port No. 4 Green
D-Black (Rod-End Lift Cyl) Port No. 3 Black
