Hose Identification-430 and 460 Loader/4000 Tractors with Optional Third Function

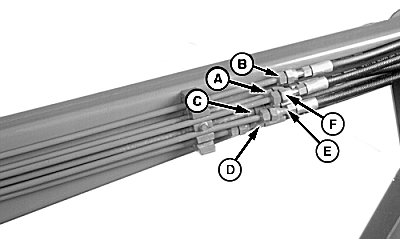

Identify hoses by installing colored dust covers on end of hoses.

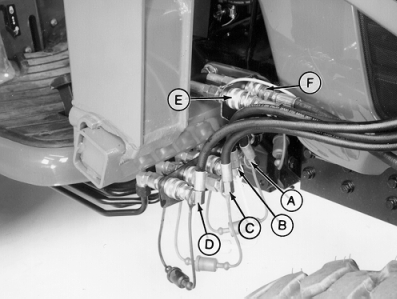

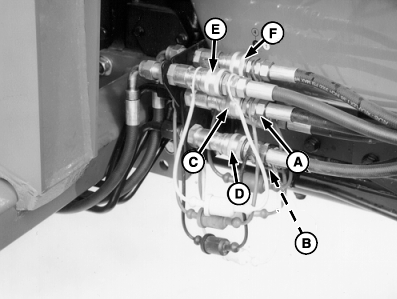

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

A-Red (Head-End Bucket Cyl) Port No. 2 Silver or Red
B-Yellow (Rod-End Bucket Cyl) Port No. 1 Yellow
C-Green (Head-End Lift Cyl) Port No. 4 Green
D-Black (Rod-End Lift Cyl) Port No. 3 Black
E-Orange (Head-End Cyl)
F-Blue (Rod-End Cyl)
