Hose Identification-430 Loader/990, 970 and 1070 Tractor

NOTE: Hose with RED dust cover attaches to PORT No. 2 which is SILVER or RED.

Identify hoses by installing colored dust covers on end of hoses.

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

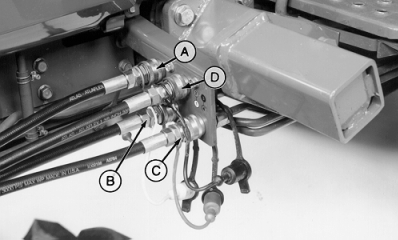

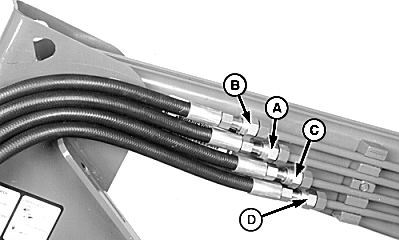

A-Red (Head-End Bucket Cyl) Port No. 2 Silver or Red
B-Yellow (Rod-End Bucket Cyl) Port No. 1 Yellow
C-Green (Head-End Lift Cyl) Port No. 4 Green
D-Black (Rod-End Lift Cyl) Port No. 3 Black
