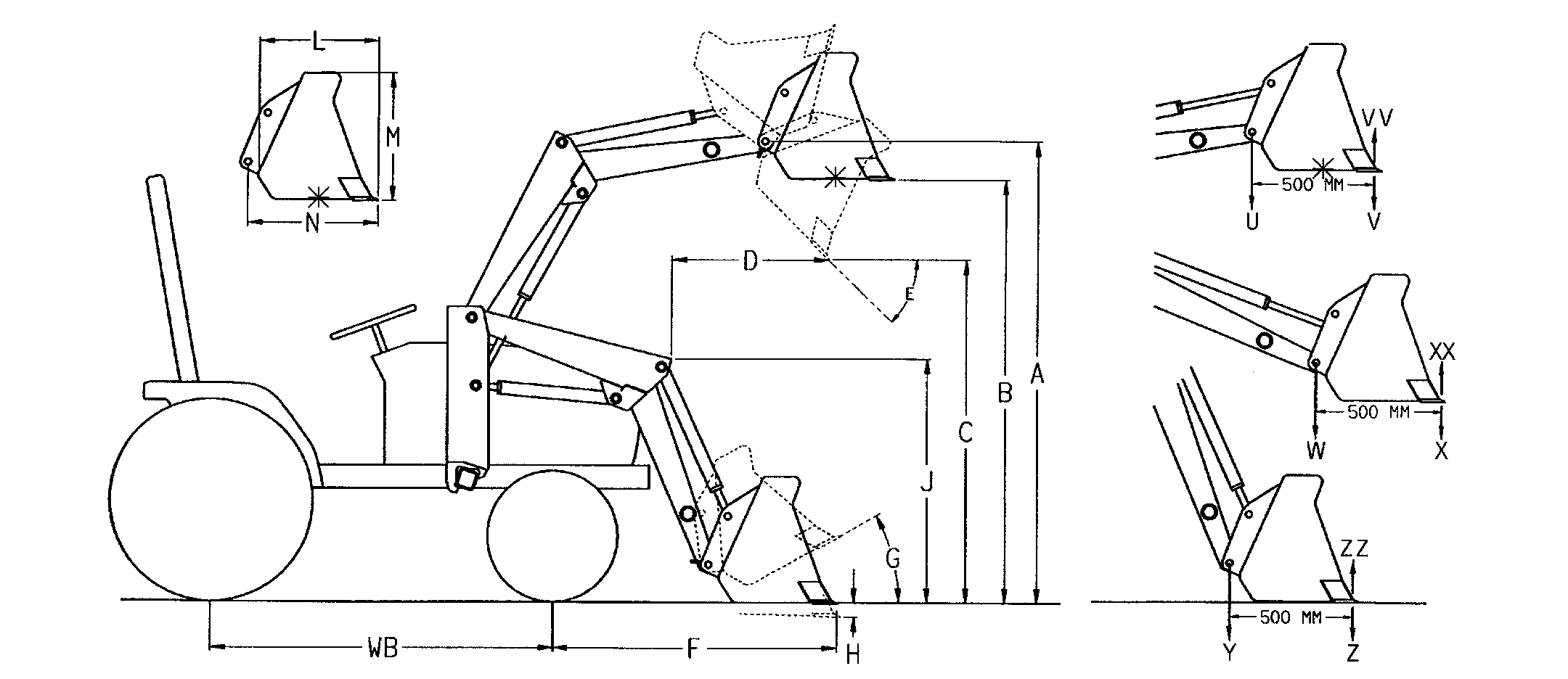

430 Loader Specifications on 4300 and 4400 Tractors1

W02979

Tractor Model 4300/4400
Front Tires 7.00-14 6PR R1
Rear Tires 11.2-24 4PR R1
Wheelbase (WB) 1726 mm (68 in.)
Material Bucket
Width 1550 mm (61 in.)
Length (N) 618 mm (24.3 in.)
Mass 86 kg (189 lb)
Hydraulic System
Rated Flow 32.6 L/Min (8.6 gal/min)
Maximum Pressure 17.2 MPA (2494 psi)
Maximum Lift Height
To Pivot Pin (A) 2575 mm (101.4 in.)
Clearance
Bucket Level (B) 2375 mm (93.5 in.)
Bucket Dumped (C) 1989 mm (78.3 in.)
Overall Length (WB+F) 3187 mm (125.5 in.)
Digging Depth (H) 155 mm (6 in.)
Reach
At Max Lift Height (D) 651 mm (25.6 in.)
Bucket on Ground (F) 1460 mm (57.5 in.)
Angles
Max Dump (E) 45°
Max Dump at Ground 130°
Max Rollback (G) 30°
Rollback at Full Height (SAE) 64°
Overall Height
In Carry Position (J) 1385 mm (54.5 in.)
Lift Capacity
To Max Height at Pivot Point (U) 572 kg (1258 lb)
To Max Height (V) 475 kg (1045 lb)
To 1.5 m (59 in.) at Pivot Point (W) 883 kg (1943 lb)
To 1.5 m (59 in.) (X) 765 kg (1687 lb)
With Forklift to Max Height (U) 345 kg (760 lb)
Breakout Force
At Pivot Point (Y) 14676 N (3299 lb force)
500 mm (19.7 in.) Forward of Pivot Point (Z) 10750 N (2417 lb force)
Bucket Rollback Force
At Max Height (VV) 9587 N (2155 lb force)
At 1.5 m (59 in.) Lift Height (XX) 14898 N (3349 lb force)
At Ground Level Line (ZZ) 13293 N (2988 lb force)



1(Specifications and design subject to change without notice.)
