O-Ring Installation

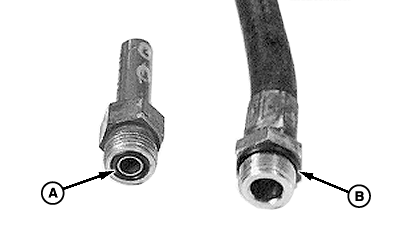

1. Inspect groove (A) and/or seat (B).

2. For groove type, apply petroleum jelly to o-ring and place in groove.

3. For seat type, install o-ring carefully over threads.

4. Install fittings by hand until snug, position adjustable fittings by unscrewing no more than one turn.

5. Tighten according to specifications. (See TORQUE PROCEDURE FOR FITTINGS in this section.)

A-Groove
B-Seat

OUO1078,000009E -19-11JAN01-1/1
