Front Tread and Steering Stop Settings-5000N Series MFWD Tractors

Tread setting at 1100 mm (43 in.) is not approved because of tire interference with the loader.

Adjust tread to 1200 mm (47 in.) and adjust steering stop length. (See your tractor Operator's Manual to make adjustments.)

1200 mm (47 in.) Tread Setting
Front Tire Size Steering Stop Length (A)
mm (in.)
7.0-16 20 (0.8)
9.5-16 20 (0.8)
10.5/80-18a 55 (2.2)
7.5-20 20 (0.8)
aLoader lift cylinder in upper position. (See CHANGING LIFT CYLINDER POSITION-521 Loader in Service Section.)



After adjusting steering stop length, check for tire clearance with loader and tractor equipment.

NOTE: For 521 loader [Serial No. -2899] this cylinder should be in upper position. (See CHANGING LIFT CYLINDER POSITION, 521 LOADER [Serial No. -2899] in Service section.)

M46966
W04109

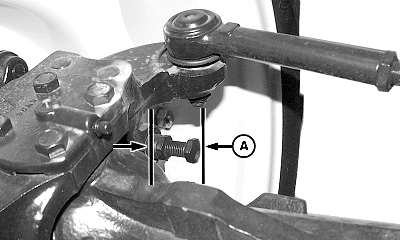

5000 Series Tractor Steering Stop


A-Distance

OUO6038,000017D -19-30NOV00-1/1
