Change Exhaust Pipe Position-5000 Series Tractors (Except 5105 and 5205)

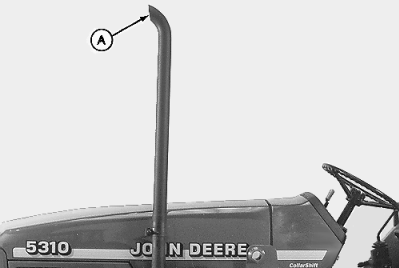

IMPORTANT: To help prevent damage to the tractor or loader caused by interference between the loader and exhaust pipe, position the exhaust pipe outlet (A) forward.

NOTE: The exhaust pipe on 5105 and 5205 tractors cannot be rotated, but has sufficient clearance as installed.

Horizontal rear/side exhaust pipe on 5105 and 5205 tractors is compatable. No re-work of frame is necessary.

A-Exhaust Pipe Outlet

OUO6038,0000189 -19-30NOV00-1/1
