Locking Out Joystick
Joystick operation can be locked out to prevent unintentional movement:
-

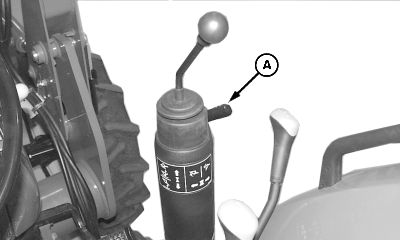

For 5000 Series tractors, turn lock (A) clockwise to lock the lever, counterclockwise to unlock.
-
For 20, 30, 40, 50, and 55 Series tractors, pull up lock at base of lever. To unlock, press sides of lock and push down.
A-Lock
|
5000 Series Tractors
20, 30, 40, 50, and 55 Series Tractors
|
