Operating Loader with Selective Control Valves-All Tractors Except 5000 Series

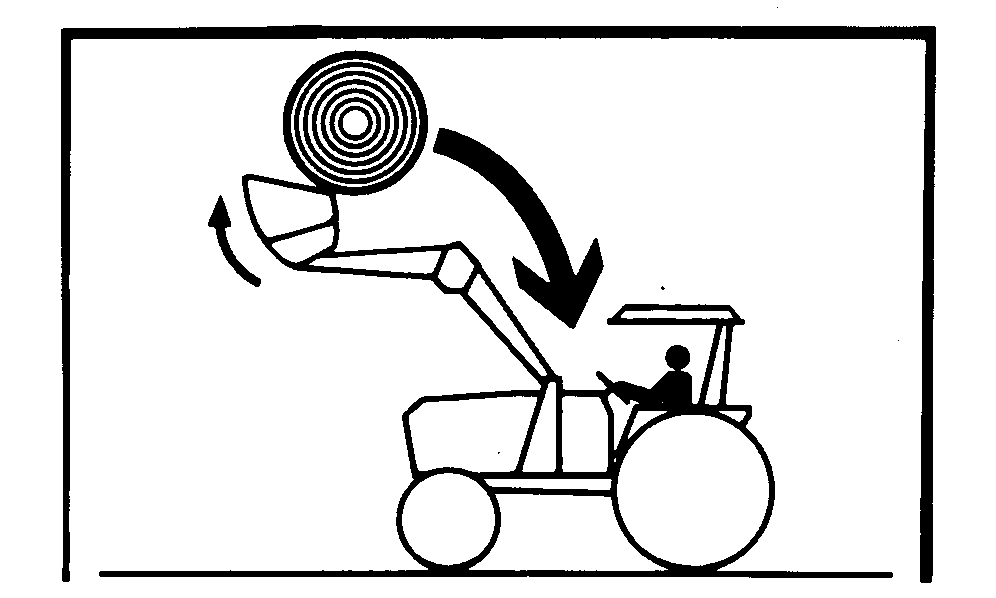

CAUTION: Help prevent personal injury or death caused by objects falling on the operator. Poppet type selective control valves have an automatic cylinder extend position (detent) that must be locked out for loader operation. Unintentional movement of the control lever to the detent position may cause the loader to raise the full height unexpectedly and the load to fall back on the operator.

NOTE: Spool type selective control valves do not have detent positions.

1. Position stops on bucket control lever (right-hand) to lockout automatic extend and retract.

2. Position rear stop on lift control lever (left-hand) to lockout automatic extend. Position front stop to lockout automatic retract only if FLOAT is not desired.

See your tractor Operator's Manual to make adjustments.

Operate loader from operator's seat only. Remain at controls until operating cycle is complete.

Levers return to NEUTRAL by themselves from all positions except FLOAT. Pull lever back to release from FLOAT.

Move levers to the following positions to operate the loader:

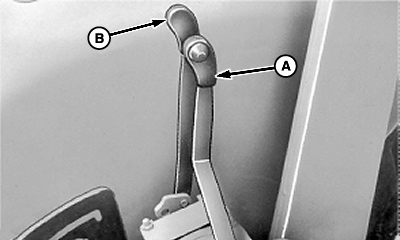

A-Loader Lift Control Lever
B-Loader Bucket Control Lever

OUO6038,000018E -19-30NOV00-1/1
