Removing Material from a Pile

IMPORTANT: High volume (0.66 cu m [23 cu ft]) bucket should only be used for light density materials.

NOTE: If pile is high, remove the top first.

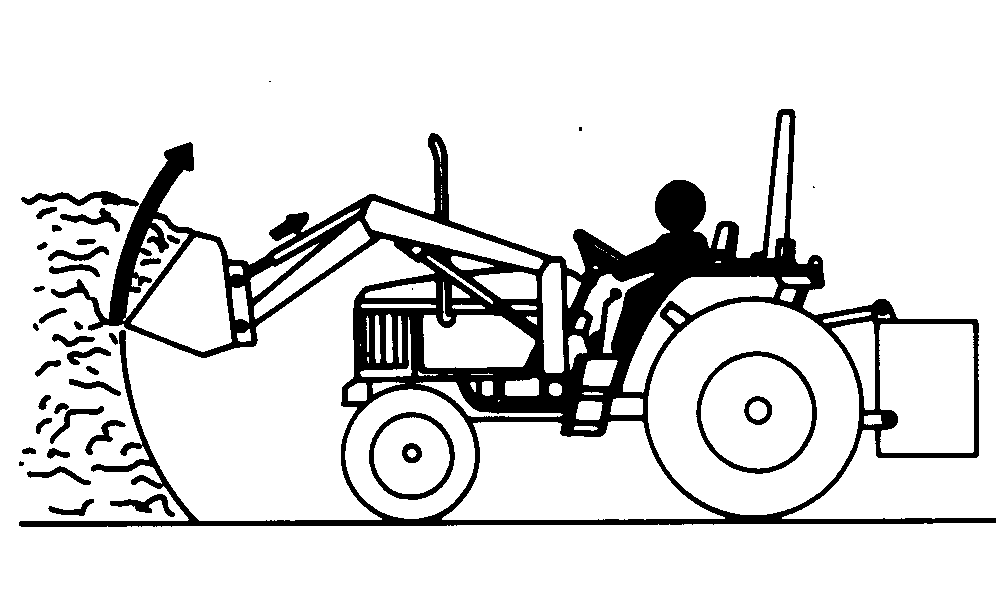

1. Approach and enter pile with bucket level. (See LEVELING THE BUCKET in this section.)

2. Move forward slowly, lifting the loader and rolling back bucket.

NOTE: Overfilling the bucket in heavy or packed material may cause the loader to stall. If loader stalls, back up or take less material.

W01143
W01142

OUO6038,0000193 -19-30NOV00-1/1
