OMW47578: 521 and 541 Loaders, Block File: OUO6038_000019D_19

Attaching Loader

1. Center tractor between loader masts.

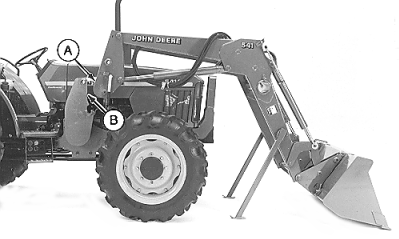

2. Stop tractor with backs of loader masts (A) approximately 75 mm (3 in.) ahead of fronts of mounting frames (B).

3. Engage parking brake and shut off engine.

A-Loader Mast
B-Mounting Frame

OUO6038,000019D -19-04DEC00-1/9

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

4. Move levers to relieve hydraulic pressure.

OUO6038,000019D -19-04DEC00-2/9

causym CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected correctly.

5. Connect hoses using colored dust caps to match hoses to couplers.

NOTE: Hoses connections are identified by matching the colored cap on the hose end with the same colored plug on the control valve coupler. If caps are missing, see IDENTIFYING HOSE CONNECTIONS in Service section for replacements.

Tractors without mid-couplers only; Install hose bracket (A) under foot platform and fasten with spring pin (B).

A-Hose Bracket
B-Spring Pin

OUO6038,000019D -19-04DEC00-3/9

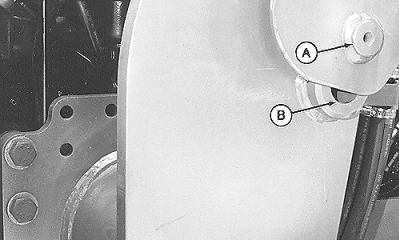

6. Start tractor and dump bucket (extend bucket cylinders) until pins (A) in masts approach saddle (B) of mounting frames.

A-Pin
B-Saddle

OUO6038,000019D -19-04DEC00-4/9

7. Slowly extend lift cylinders until pins (A) of masts contact front of frame directly above saddle (B).

8. Extend bucket cylinders until pins (A) rest in saddles (B) and stands are lifted off the ground.

A-Pin
B-Saddle

OUO6038,000019D -19-04DEC00-5/9

IMPORTANT: To avoid damage to stands, be sure stands do not contact ground, and remain 75 mm (3 in.) off ground when retracting lift cylinders.

9. Release parking brake. With tractor in neutral, slowly retract lift cylinders (pulling tractor forward) until bushing holes in mast and frame are aligned. Dump bucket to allow for parking stand removal.

10. Remove pins (A) from storage holes (C) and insert through mast and frame holes. Fasten with clips (B).

A-Pins
B-Clips
C-Storage Holes

OUO6038,000019D -19-04DEC00-6/9

11. Attach hoses to mast using spring locking pin (A).

A-Spring Locking Pin

OUO6038,000019D -19-04DEC00-7/9

12. Store parking stands;

521 Loader (Serial No. -2899)

a. Remove pin (A).

b. Slide stand up and swing up.

c. Reinstall pin (A) to lock stand up.

A-Pin

OUO6038,000019D -19-04DEC00-8/9

NOTE: 541 Loader illustrated. 541 Loader stands are square. 521 Loader (Serial No. 2900- ) stands are round. Storing procedure is the same for both loaders.

521 Loader (Serial No. 2900- ) and 541 Loader

a. Remove pin (B) and remove left parking stand from bracket.

b. Insert stand into storage tube and fasten with spring pin (A).

c. Repeat above steps for stand on right-hand side of loader.

A-Pin
B-Pin

OUO6038,000019D -19-04DEC00-9/9
