Detaching Bucket, Forklift or Bale Fork

1. Level the attachment and lower until approximately 300 mm (12 in.) off ground. Engage tractor parking brake and shut off engine.

2. Remove quick-lock pin (A) on each side of attachment.


A-Quick-Lock Pin

W03986

OUO6038,000019D -19-04DEC00-1/3

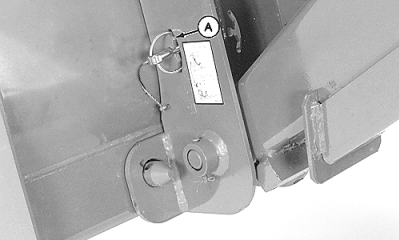

3. Store quick-lock pin in slot (A).


A-Quick-Lock Pin

W03985

OUO6038,000019D -19-04DEC00-2/3

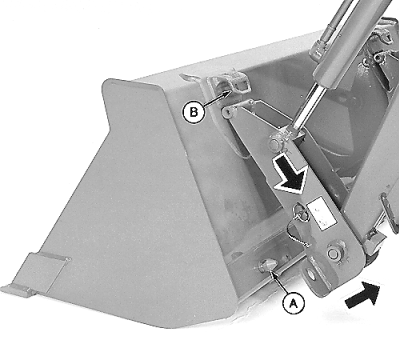

4. Dump attachment to clear pins (A) and then lower loader to clear brackets (B).


A-Pins
B-Brackets

W03987

OUO6038,000019D -19-04DEC00-3/3
