Attaching Bucket, Forklift or Bale Fork

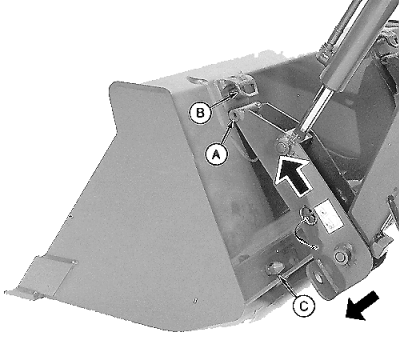

1. Align loader pins (A) with attachment brackets (B).

2. Raise loader and roll back attachment until attachment pins (C) are through loader bracket. Engage tractor parking brake and shut off engine.


A-Pins
B-Brackets
C-Pins

W03988

OUO6038,000019E -19-04DEC00-1/2

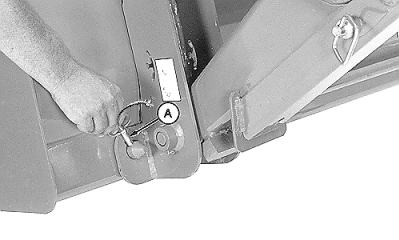

3. Install quick-lock pins (A) on both sides of attachment.


A-Quick-Lock Pins

W03986

OUO6038,000019E -19-04DEC00-2/2
