Every 10 Hours-541 Loader

NOTE: 541 Loader with mechanical self-level (22 fittings) illustrated. 541 Loader without mechanical self-level (16 fittings) does not have upper linkage. Other fittings are the same.

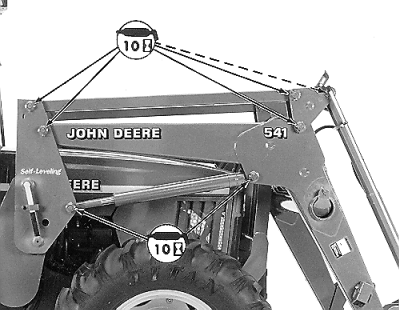

1. With bucket flat on ground, lubricate upper linkage (with mechanical self-level only), lift cylinder and boom pivot pins.

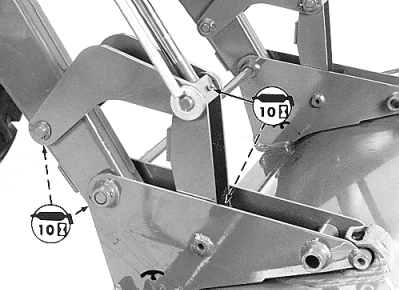

2. With bucket fully dumped and lowered to the ground, lubricate pivot linkage.

W03161

Right-Hand Side Shown

W03162

OUO6038,00001AC -19-04DEC00-1/1
