Changing Lift Cylinder Position-521 Loader (Serial No. -2899)

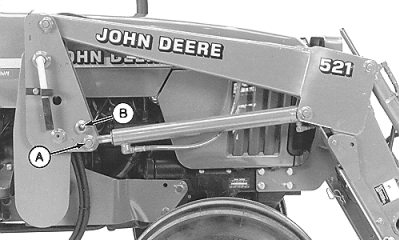

Two lift cylinder positions are available. Moving lift cylinder from hole (A to B) increases full lift height by approximately 300 mm (12 in.). Lift capacity is reduced by approximately 234 kg (500 lb).

For most applications, use position (A).

To change positions, detach loader and move cylinder attaching pin to the desired hole on both sides of loader.

A-Hole
B-Hole
