Adjusting Bucket Level Indicator (If Equipped)

NOTE: Bucket top is parallel to bottom. Bucket is level when bucket top is level.

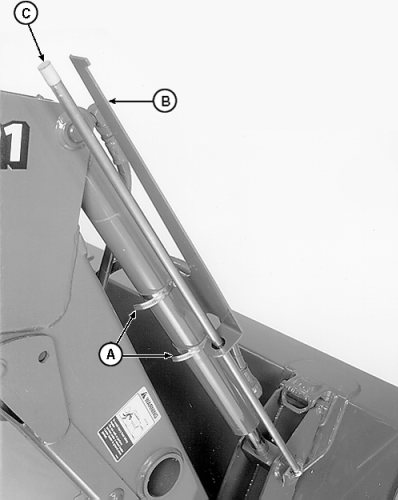

1. Position bucket level on ground.

2. Loosen clamps (A) on bucket level indicator (B).

3. Slide indicator on bucket cylinder until bottom of cap (C) is flush with top of indicator when viewed from operator's station.

4. Tighten clamps.

NOTE: Indicator position for a bucket will not be the same for a bale fork, forklift or other attachments. When using it for an attachment other than a bucket, level the attachment and reposition the indicator on the bucket cylinder.


A-Clamps
B-Indicator
C-Cap

W03256

OUO6038,00001C0 -19-05DEC00-1/1
