Identifying Hose Connections-521 Loader (Serial No. 2900- ), 5105 and 5205 Tractors Operated with Tractor Selective Control Valves
CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown below.
NOTE:
Hose connections are identified by color keyed dust covers. Colored plugs are installed on the tractor selective control valve outlets at loader predelivery. Corresponding colored caps are installed on loader hose ends.
Use the following chart to identify hoses and replace missing colored dust covers:
| |

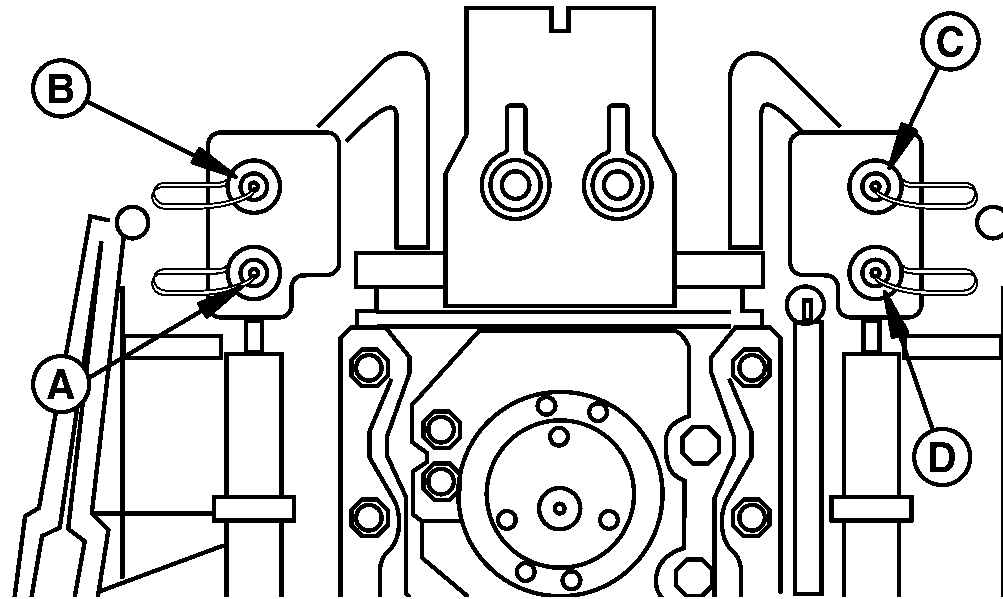

Loader Cylinder Work Port |
Color of Dust Cover |
| A |
Bucket Cylinder Head End |
Yellow |
| B |
Bucket Cylinder Rod End |
Black |
| C |
Lift Cylinder Head End |
Blue |
| D |
Lift Cylinder Rod End |
Red |

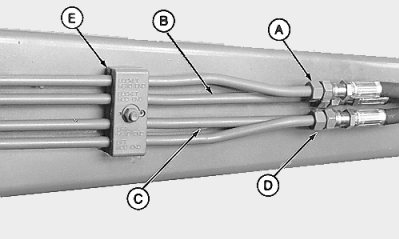

Hydraulic line use is also described on face of clamp (E).
IMPORTANT:
Lines from control levers at valve cross over in routing to couplers at rear of tractor. LEFT CONTROL LEVER (Boom Control) USES RIGHT COUPLERS at rear of tractor; RIGHT LEVER (Bucket Control) USES LEFT COUPLERS at rear of tractor.
|
