541 Loader Specifications on 5520 MFWD Tractor1
|
OUO6077,000138F -19-14FEB01-1/2 |

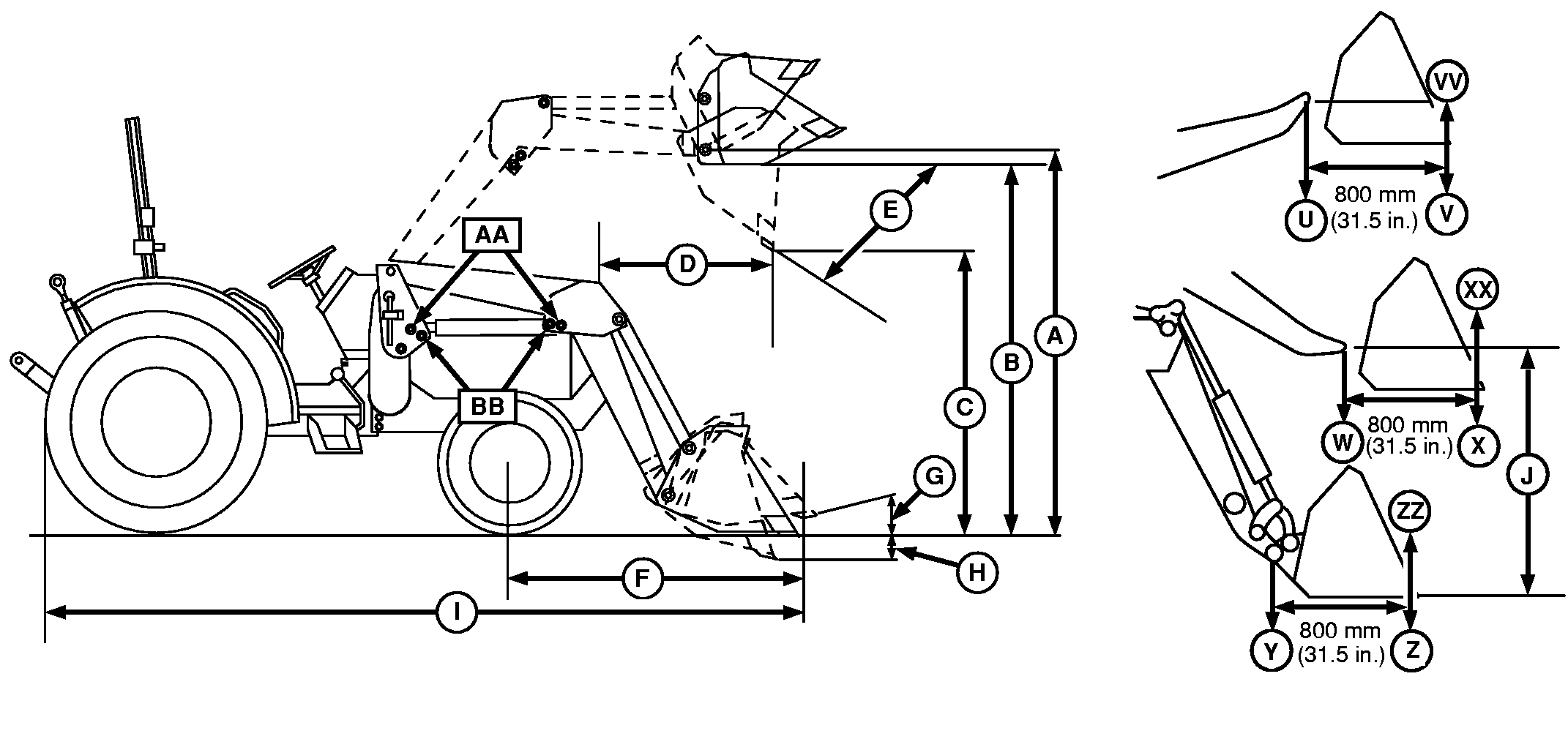

| 541 Standard Loader | 541 Mechanical Self-Level Loader | |
|---|---|---|
| Tractor Models | 5520 MFWD | 5520 MFWD |
| Front Tires | 11.2-24 | 11.2-24 |
| Rear Tires | 16.9-30 | 16.9-30 |
| Capacity | ||
| (U) Lift Capacity at Full Height at Pivot Pin | 1403 kg (3093 lb) | 1458 kg (3214 lb) |
| (V) Lift Capacity at Full Height | 968 kg (2134 lb) | 1080 kg (2381 lb) |
| (W) Lift Capacity at 1448 mm (57 in.) (J) at Pivot Pin | 1861 kg (4130 lb) | 1800 kg (3969 lb) |
| (X) Lift Capacity to 1448 mm (57 in.) (J) | 1350 kg (2976 lb) | 1740 kg (3836 lb) |
| (Y) Breakout Capacity at Pivot Pin | 15 500 N (3484 lb force) | 18 400 N (4137 lb force) |
| (Z) Breakout Capacity | 17 300 N (3889 lb force) | 20 900 N (4698 lb force) |
| (VV) Bucket Rollback at Full Height | 15 100 N (3394 lb force) | 14 100 N (3169 lb force) |
| (XX) Bucket Rollback at 1448 mm (57 in.) (J) | 23 500 N (5283 lb force) | 22 500 N (5058 lb force) |
| (ZZ) Bucket Rollback at Ground | 25 500 N (5733 lb force) | 23 600 N (5305 lb force) |
| Dimensions | ||
| (A) Maximum Lift Height at Pivot Pin | 3236 mm (127 in.) | 3350 mm (132 in.) |
| (B) Clearance, Bucket Level | 2986 mm (117.5 in.) | 3100 mm (122 in.) |
| (C) Clearance, Bucket Dumped | 2422 mm (95.3 in.) | 2537 mm (100 in.) |
| (H) Digging Depth | 258 mm (10 in.) | 252 mm (10 in.) |
| (D) Reach at Full Height, Dumped (45°) | 875 mm (34.5 in.) | 742 mm (29 in.) |
| (F) Reach at Ground, Level Bucket | 2087 mm (82 in.) | 2125 mm (83 in.) |
| (E) Maximum Dump Angle | 80° | 86° |
| (G) Roll Back on Ground | 30° | 39° |
| (I) Overall Length | 4999 mm (182 in.) | 5045 mm (198.6 in.) |
| Highest Point on Loader | ||
| Bucket on Ground | 1685 mm (66 in.) | 1800 mm (71 in.) |
| Rolled Back, 300 mm (12 in.) off Ground | 1692 mm (66.6 in.) | 1883 mm (74 in.) |
|
Capacities are shown measured to bucket bottom midpoint, using a 1850 mm (73 in.) bucket. Objects such as round bales or bins on a forklift move the weight out from this point, decreasing lift capacity. |
Dimensions are in compliance with ASAE Standard S301.3. |
