Leveling and Scraping Forward

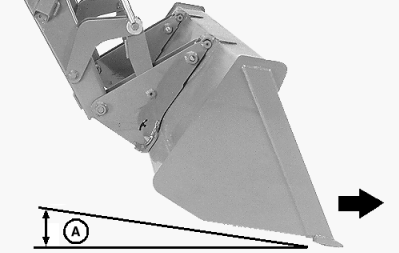

Angle (A) should be 0 to 15° to avoid bending bucket edge. To prevent excessive wear when scraping concrete surfaces, keep bucket level to distribute weight on bucket wear pads. Use "float" to reduce down pressure on bucket.

Position bucket level or slightly above horizontal (A).

Drive forward slowly.

A-Bucket Angle
