Leveling in Reverse

IMPORTANT: Back blading with the bucket positioned greater than 45° may damage the bucket cutting edge, bucket cylinders, and/or loader linkage.

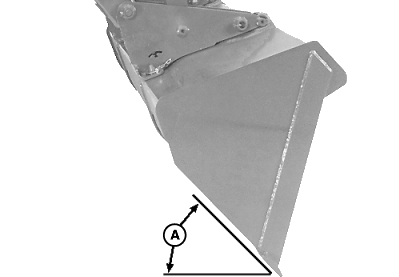

Position bucket between 30 and 45° from horizontal (A) and reverse slowly.

When possible, use "float" to reduce down pressure on bucket.

A-Angle of Bucket

WX,440B,OM,5 -19-29MAR95-1/1
