840 Loader Specifications on 7000 Series Tractor1
|
|
NOTE: ASAE S301.3 replaced S301.2, January 1996. S301.3 measures lift capacity and breakout 800 mm (31.5 in.) forward of bucket pivot pin. |

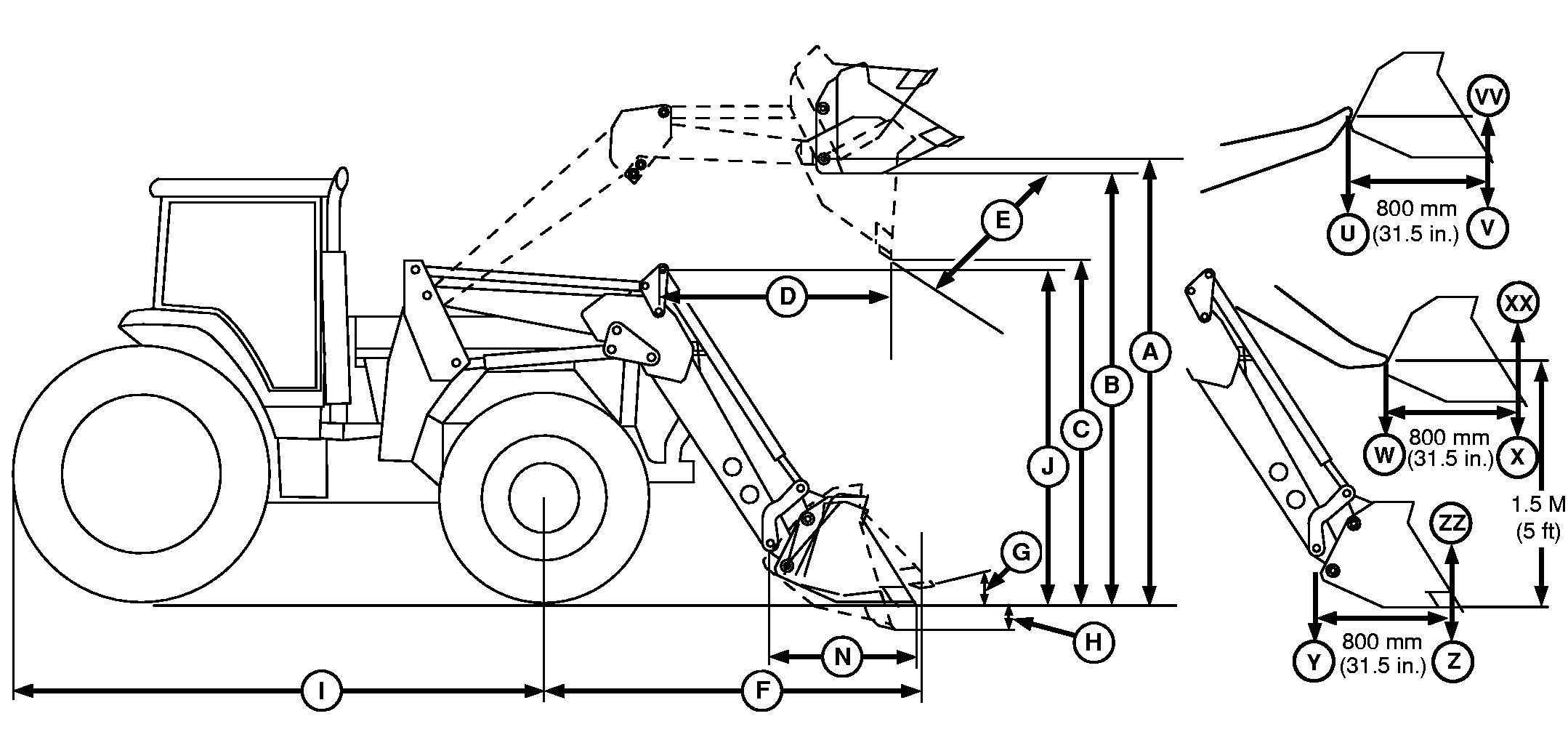

Capacities and dimensions are in compliance with ASAE Standards S301.2 and S301.3. |
| ASAE S301.2 | ASAE S301.3 | |
|---|---|---|
| Tractor Model | 7600 | 7600 |
| Front Tires | 16.9R28 | 16.9R28 |
| Wheelbase (I) | (not measured) | (not measured) |
| Materials Bucket | ||
| Width | 2450 mm (96.5 in.) | 2450 mm (96.5 in.) |
| Length (N) | 747 mm (29.4 in.) | 747 mm (29.4 in.) |
| Mass | 348 kg (767 lb) | 348 kg (767 lb) |
| Hydraulic System | ||
| Rated Flow | 96 L/Min (26 gpm) | 96 L/Min (26 gpm) |
| Maximum Pressure | 20 000 kPa (200 bar) (2900 psi) | 20 000 kPa (200 bar) (2900 psi) |
| Lift Height (Maximum) | ||
| To Pivot Pin (A) | (not measured) | 4685 mm (184.4 in.) |
OUMX005,0001482 -19-05NOV01-1/2 |
| ASAE S301.2 | ASAE S301.3 | |
|---|---|---|
| Clearance | ||
| Bucket Level (B) | (not measured) | 4468 mm (176 in.) |
| Bucket Dumped (C) | 3840 mm (151 in.) | 3840 mm (151 in.) |
| Overall Length (I+F) | 6405 mm (252 in.) | 6405 mm (252 in.) |
| Digging Depth (H) | 285 mm (11.2 in.) | 285 mm (11.2 in.) |
| Reach | ||
| At Maximum Lift Height (D) | 1005 mm (39.5 in.) | 1005 mm (39.5 in.) |
| Bucket on Ground (F) | 2670 mm (105 in.) | 2670 mm (105 in.) |
| Angles (Maximum) | ||
| Dump (E) | 60° | 60° |
| Dump at Ground | 78° | 78° |
| Rollback (G) | 40° | 40° |
| Overall Height | ||
| In Carry Position (J) | 2597.6 mm (102.3 in.) | 2597.6 mm (102.3 in.) |
| Lift Capacity | ||
| To Maximum Height at Pivot Point (U) | (not measured) | 2260 kg (4972 lb) |
| To Maximum Height (V) | 2160 kg (4752 lb) | 2114 kg (4651 lb) |
| To 1.5 m (59 in.) at Pivot Point (W) | (not measured) | (not measured) |
| To 1.5 m (59 in.) (X) | (not measured) | (not measured) |
| Breakout Force | ||
| At Pivot Point (Y) | (not measured) | 3378 N (759 lb force) |
| 800 mm (31.5 in.) Forward of Pivot Point (Z) | (not measured) | 2986 N (671 lb force) |
| Bucket Rollback Force | ||
| At Maximum Height (VV) | (not measured) | 44 000N (9892 lb force) |
| At 1.5 m (59 in.) Lift Height (XX) | (not measured) | 55 000 N (12 365 lb force) |
| At Ground Level Line (ZZ) | (not measured) | 22 500 N (11 578 lb force) |
OUMX005,0001482 -19-05NOV01-2/2 |
