Identifying Hose Connections for SCV Operated Loader with Electrohydraulic (EH) Valve-8000 Series Tractors
| SCV NUMBER |
LOADER OPERATION |
| I |
Boom Raise-Lower and Float |
| II |
Bucket-Dump and Roll Back |
| Hose Connection |
Dust Plug/Cap Color |
Hydraulic Function |
| A |
Yellow |
Bucket Cylinder-Head End |
| B |
Black |
Bucket Cylinder-Rod End |
| C |
Blue |
Lift Cylinder-Head End |
| D |
Red |
Lift Cylinder-Rod End |
| E |
Orange |
Attachment Cylinder-Head End |
| F |
Green |
Attachment Cylinder-Rod End |
|

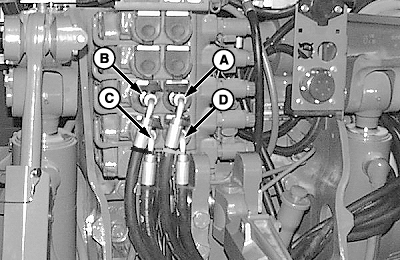

Hoses at Tractor SCV

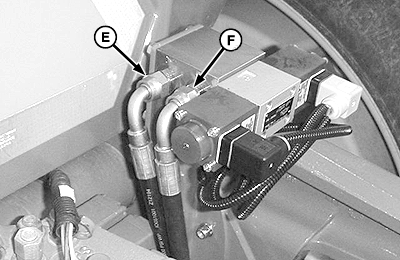

Hoses at EH Valve
|
