O-Ring Installation

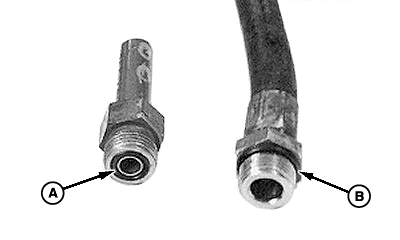

1. Inspect groove (A) and/or seat (B).

2. Flat face O-ring seal (A); Apply petroleum jelly to O-ring and place in groove.

O-ring boss (B); Install O-ring carefully over threads.

3. Install fittings by hand until snug, position adjustable fittings by unscrewing no more than one turn.

4. Tighten according to specifications. (See TORQUE PROCEDURE FOR FITTINGS in this section.)

A-Groove
B-Seat
