Every 10 Hours

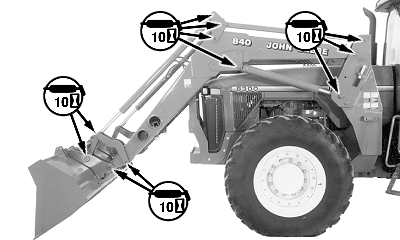

Loader

Lubricate twelve fittings, six on each side of loader.

Lubricate bucket latch pins.

W04799

OUO6038,00013AB -19-28MAR01-1/3

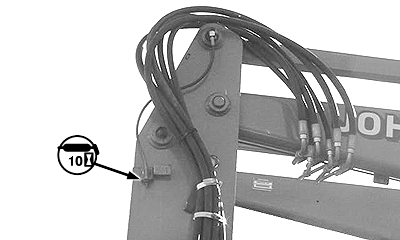

Loader-Self-Level Link Pin (Right-Hand Mast Only)
W04897

OUO6038,00013AB -19-28MAR01-2/3

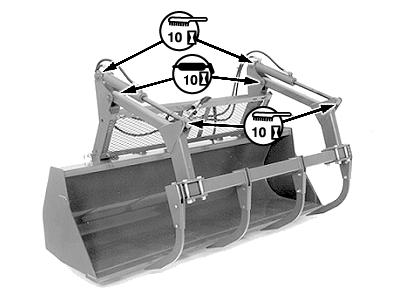

Grapple

Lubricate two fittings on back of pivot arms.

Apply grease, oil or spray lubricant to cylinder pivots.

W04800

OUO6038,00013AB -19-28MAR01-3/3
