Adjusting Detent Time-SCV Operated Loader on 8000 Series Tractors
 CAUTION:
Help prevent personal injury or death caused by objects falling on the operator. Selective control valves have an automatic cylinder extend position (detent) that must not be used for loader operation. Unintentional movement of the controls to the detent position may cause the loader to raise to full height unexpectedly and the load to fall back on the operator.
Adjust detent time to zero (0) (no timed detent).
1.

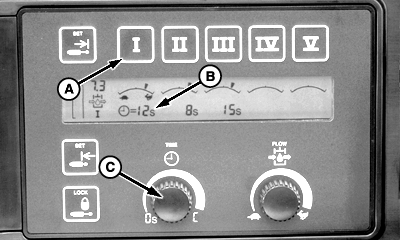

Press selected SCV switch (A). Display below touch switch shows set time.
2.
Adjust displayed detent time by turning knob (C) counterclockwise to zero (0). Time setting is shown on display (B).
|
