Detaching Loader

causym CAUTION: To help prevent personal injury caused by a falling loader, always detach on a hard, level surface. Loader must be equipped with a bucket and parking stands.

1. Dump bucket 40° below level.

W14000

OUO6038,0001429 -19-12SEP01-1/7

2. Lower bucket to ground, applying slight down pressure. Do not raise tires off ground.

3. Place transmission in "PARK" and shut off engine.

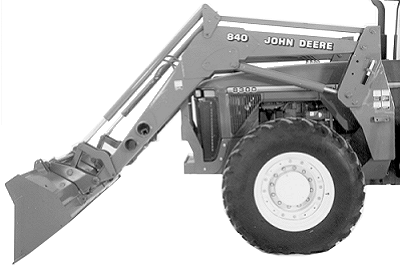

W04563

OUO6038,0001429 -19-12SEP01-2/7

4. Remove parking stands from storage and install using pins (A) in second hole from top of stand, and spring locking pins (B).

NOTE: To prevent loader from sinking in soft ground, place boards under parking stands.


A-Pins
B-Spring Locking Pins

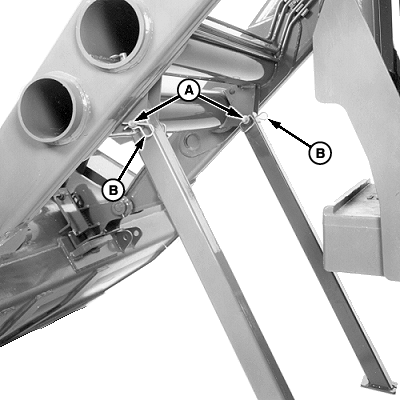

W04752

OUO6038,0001429 -19-12SEP01-3/7

5. Remove pin (B) from loader mast on each side:

a. Lift spring lock (C), rotate handle (D) upward, and pull out pin (B).

b. Store pin in hole (A).


A-Hole
B-Pin
C-Spring Lock
D-Handle

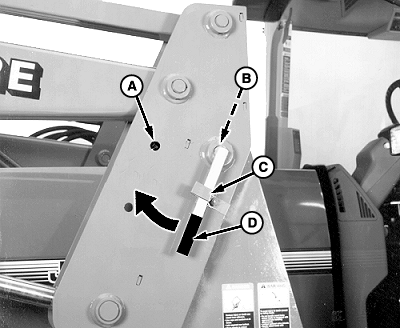

W04564

Left-Hand Side Shown

OUO6038,0001429 -19-12SEP01-4/7

6. Slowly roll bucket back to level. Drive ahead as necessary to keep hoses slack.

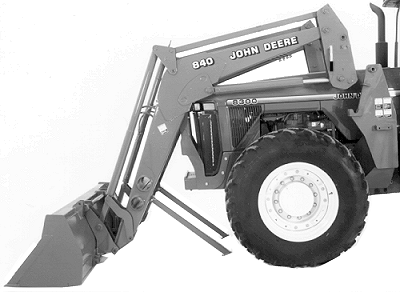

W04565

OUO6038,0001429 -19-12SEP01-5/7

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

To prevent personal injury caused by unexpected movement, lower loader to ground before relieving pressure.

7. Relieve hydraulic pressure for loader lift and bucket circuits or attachment operated with an SCV:

  • 50, 55, 60 and 7000 Series Tractors with SCV or multi-function control lever operated loader; Shut off engine and move loader control lever(s) back and forth and side-to-side (if applicable) several times.
  • 8000 Series Tractors with SCV operated loader; With engine running, move loader control levers to FLOAT, hold for 30 seconds, and shut off engine.
  • 8000 Series Tractors with multi-function control lever operated loader; Shut off engine. Pull down on knob (A) and hold for ten seconds.
X9811
W00583
W04875


A-Knob

OUO6038,0001429 -19-12SEP01-6/7

Relieve hydraulic pressure for attachment circuit operated with an electrohydraulic valve:

a. Turn key to ON position. Do not start tractor engine.

b. Press switch (A or B) several times.

c. Turn key to OFF position.

8. Disconnect hydraulic couplers.

9. Place caps on hose ends and plugs in couplers.

10. Store hoses on loader. Do not lay hoses on ground.

11. Place transmission in reverse and move tractor slowly away from loader.
