Leveling Bucket

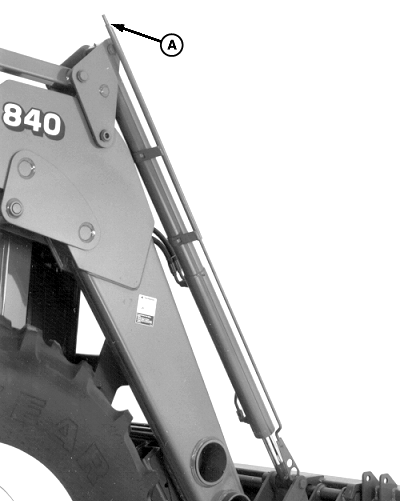

With bucket level indicator (B) properly adjusted, bucket should be level when top of rod is flush with tube (A).

NOTE: Indicator position for a bucket will not be the same for a bale fork or forklift. When using it for an attachment other than a bucket, level attachment and put a new mark on rod at top of tube.

A-Tube

OUO6038,000142F -19-14SEP01-1/1
