Front Tread Setting-2-Wheel Drive Tractors

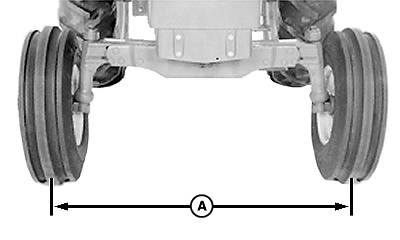

Adjust tire center-to-center distance (A) until within specification. (Wider spacings can be used.)

Specification

Tire Center-to-Center -Distance (Approximate) 1800 mm (71 in.)

Setting must not exceed maximum width recommended in tractor Operator's Manual for loaders. (See tractor Operator's Manual to make adjustments.)


A-Distance
