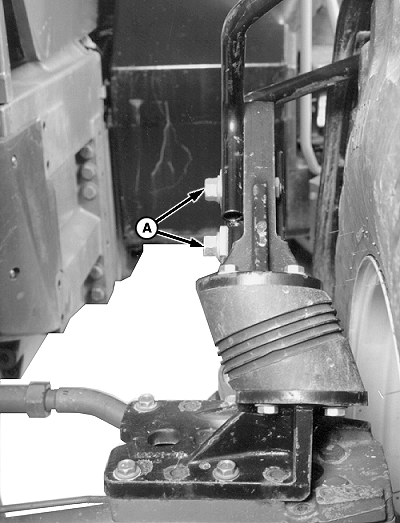

Front Tread Setting-8000 Series MFWD TractorsNOTE: 8000 TEN and 8000 TWENTY Series Tractors; Order optional stationary fenders. For 480/70R28 tires, install fender support cap screws (A) in lowest position. Tractors WITHOUT fenders; Use the same steering stop settings as a tractor without a loader. (See tractor Operator's Manual to make adjustments.) 8000 Series Tractors WITH fenders (Excluding 8000 TEN and 8000 TWENTY Series); Use the following chart to determine fender position and steering stop settings. See tractor Operator's Manual to make adjustments.
|
|
|||||||||||||
| Tire Size | Tread Setting /Steering Stop Position (8000 Series Tractors Only) | |||||||
|---|---|---|---|---|---|---|---|---|
| 1525 mm (60 in.) |
1625 mm (64 in.) |
1725 mm (68 in.) |
1825 mm (72 in.) |
1925 mm (76 in.) |
2025 mm (80 in.) |
2125 mm (84 in.) |
2225 mm (88 in.) |
|
| 14.9R34 | a | a | 3 | 3 | 3 | a | a | a |
| 16.9R30 | a | a | 3 | 3 | 3 | a | a | a |
| 18.4R28 | a | a | 3 | 3 | 3 | a | a | a |
| 480/70R28 | 1 | 1 | 2 | |||||
| 480/70R30 | a | a | 3 | 3 | 3 | a | a | a |
| 600/65R28 | a | a | 3 | 3 | 3 | a | a | a |
| aDo not use, unacceptable clearance between fender and loader when axle oscillates | ||||||||
|
See tractor Operator's Manual for fender mounting bracket position. |
OUO6038,0001448 -19-17SEP01-1/1 |
