Front Tread Setting-7000 Series MFWD TractorsTractors WITHOUT fenders; Use the same steering stop settings as a tractor without a loader. (See tractor Operator's Manual to make adjustments.) Tractors WITH fenders; Use the following chart to determine fender position and steering stop settings. (See tractor Operator's Manual to make adjustments.)
|
|
||||||||||||||||

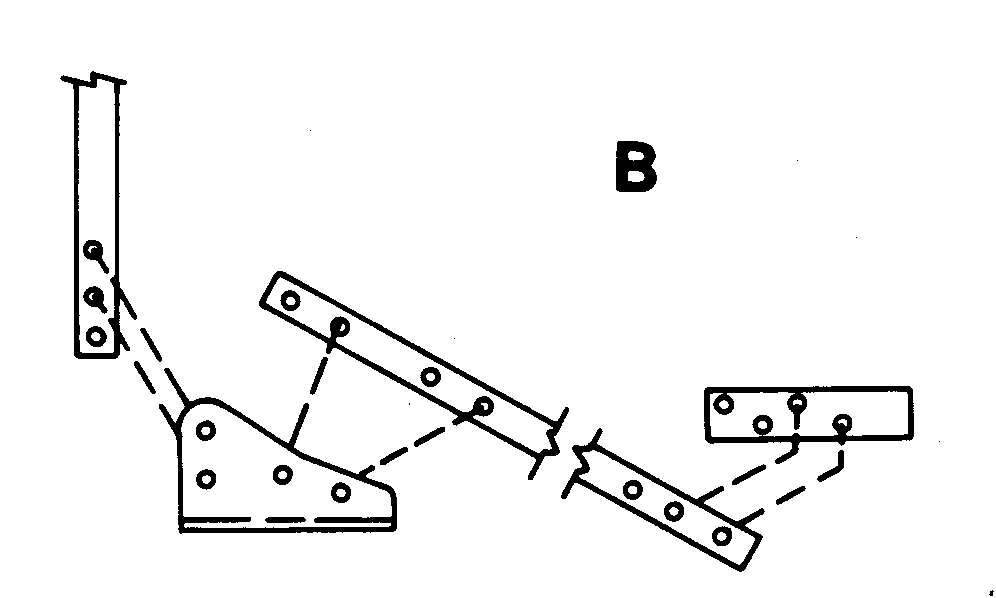

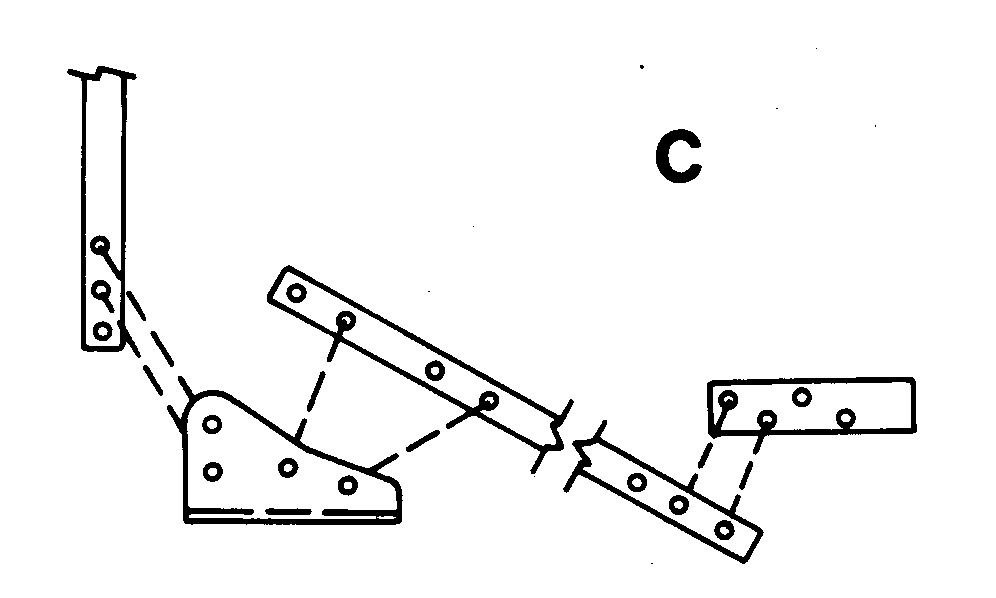

| Tire Size | Fender Position | Tread Settings and Steering Stop Positions | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 1524 mm (60 in.) | 1630 mm (64 in.) | 1730 mm (68 in.) | 1830 mm (72 in.) | 1930 mm (76 in.) | 2030 mm (80 in.) | 2130 mm (84 in.) | 2240 mm (88 in.) | ||
| 13.6R28 | B | 2 | 2 | 1 | 1 | 1 | 1 | ||
| 14.9R28 | B | 2 | 2 | 1 | 1 | 1 | 1 | ||
| 14.9R30 | B | 2 | 2 | 1 | 1 | 1 | 1 | 1 | |
| 16.9R26 | B | 2 | 2 | 1 | 2 | 1 | 1 | 1 | |
| 16.9R28 | C | 2 | 2 | 1 | 2 | 1 | 1 | 1 | |
| 290/95R34 | B | 3 | 2 | 1 | 2 | 1 | 1 | 1 | |
| 320/85R34 | B | 3 | 2 | 1 | 2 | 1 | 1 | 1 | |
| 420/70R28 | B | 3 | 2 | 2 | 2 | 1 | 2 | 2 | 1 |
| 480/70R28 | B | 3 | 3 | 2 | 2 | 2 | 2 | 2 | 1 |
