Front Tread Setting-50, 55, and 60 Series MFWD Tractors

See tractor Operator's Manual to make adjustments.

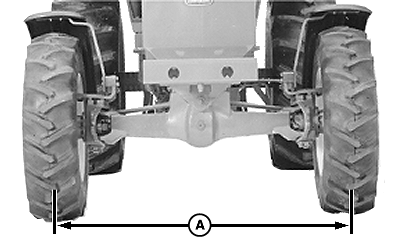

Distance from tire center to tire center (A):

With Fenders
Minimum Tread Setting Steering Stop Setting
1800 mm (71 in.) 42°



NOTE: Adjust fenders to the lowest and most outward position possible.

Without Fenders
Minimum Tread Setting Steering Stop Setting
1700 mm (67 in.) 42°



NOTE: Settings are approximate. Wider settings may be used.
