Operating Loader With Multi-Function Control Lever

Operate loader from operator's seat only. Remain at controls until operating cycle is complete.

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

Slightly extra effort is required to move lever beyond DUMP to FAST DUMP. Bucket cylinder force is reduced in FAST DUMP position. Use it only for dumping materials.

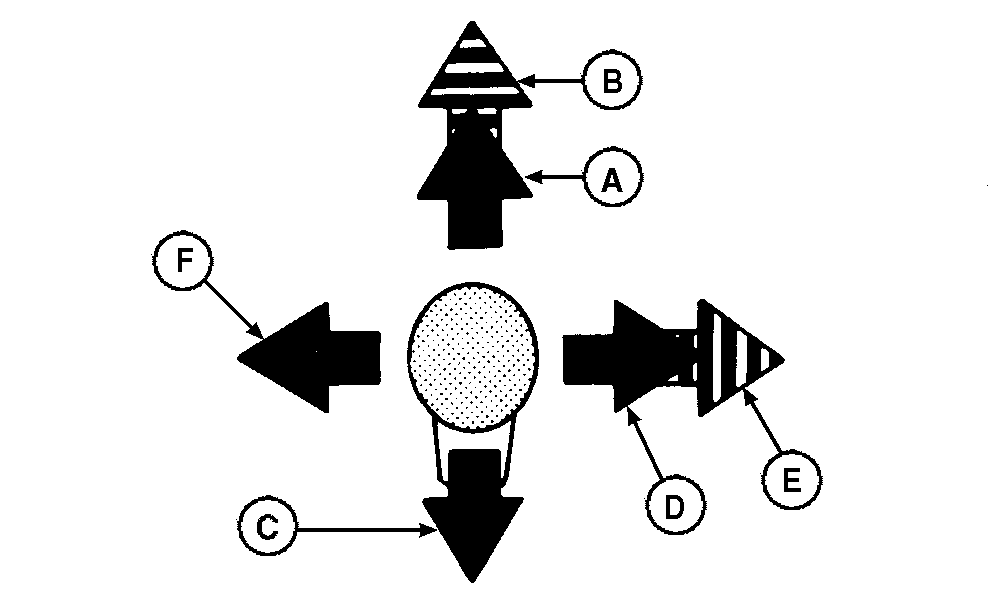

Key Lever Movement Loader Operation
A Forward Boom Lower
B Locked Forward Boom Float
C Back Boom Raise
D To Right-Hand Side Bucket Power Dump
E To Full Right-Hand Sidea Bucket Fast Dump
F To Left-Hand Side Bucket Roll Back
aSlightly extra effort is required to move lever to the fast dump position.



NOTE: Oil flow limitations may not allow you to do two loader operations at one time such as RAISE and ROLL BACK. The operation that requires the least hydraulic force will move first.

Bucket force is reduced in FAST DUMP. Use it only for dumping materials.

Lever can be locked in neutral to prevent unintentional movement. (See Locking Out Multi-Function Control Lever in this section.)

W03253

OUO6038,000144F -19-17SEP01-1/1
