Operating Loader with Selective Control Valve (SCV) Levers

causym CAUTION: Help prevent personal injury or death caused by objects falling on the operator. Selective control valves have an automatic cylinder extend position (detent) that must be locked out for loader operation. Unintentional movement of the controls to the detent position may cause the loader to raise to full height unexpectedly and the load to fall back on the tractor cab or operator. See tractor Operator's Manual or Preparing the Tractor section of this manual to make adjustments.

Connect loader hoses to tractor selective control valves so that loader operates using tractor SCV controls (A):

SCV Number Loader Operation
I Boom Raise, Lower and Float
II Bucket Dump and Roll Back
III Attachment (Grapple) Open and Close



Adjust selective control valves to operate loader at desired speed. (See tractor Operator's Manual to make adjustments.)

NOTE: Oil flow limitations may not allow two loader operations at one time such as RAISE and ROLL BACK. The operation that requires the least hydraulic force will move first.

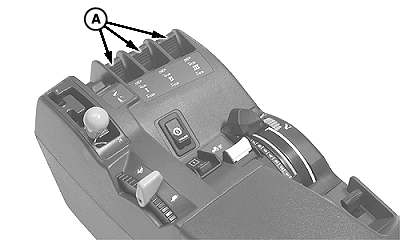

W04824

8000 Series Tractor

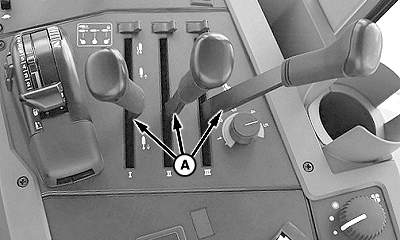

W04825

7000 Series Tractor


A-SCV Controls
