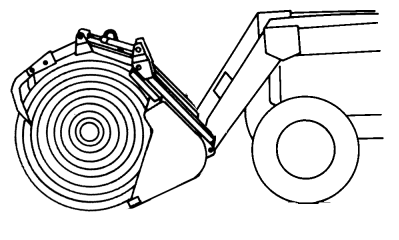

Picking up a Round Bale

1. Approach bale with grapple open, bucket slightly dumped and close to the ground.

2. Push bucket against bale until bale is against grapple frame.

3. Close grapple, roll bale back slightly and lower loader to provide just enough ground clearance for transport.

OUO6038,000145F -19-17SEP01-1/1
