Forklift

causym CAUTION: To help prevent tractor/loader instability, never exceed the capacity of the tractor/loader used with the forklift. To increase loader stability, adjust tines to maximum width possible.

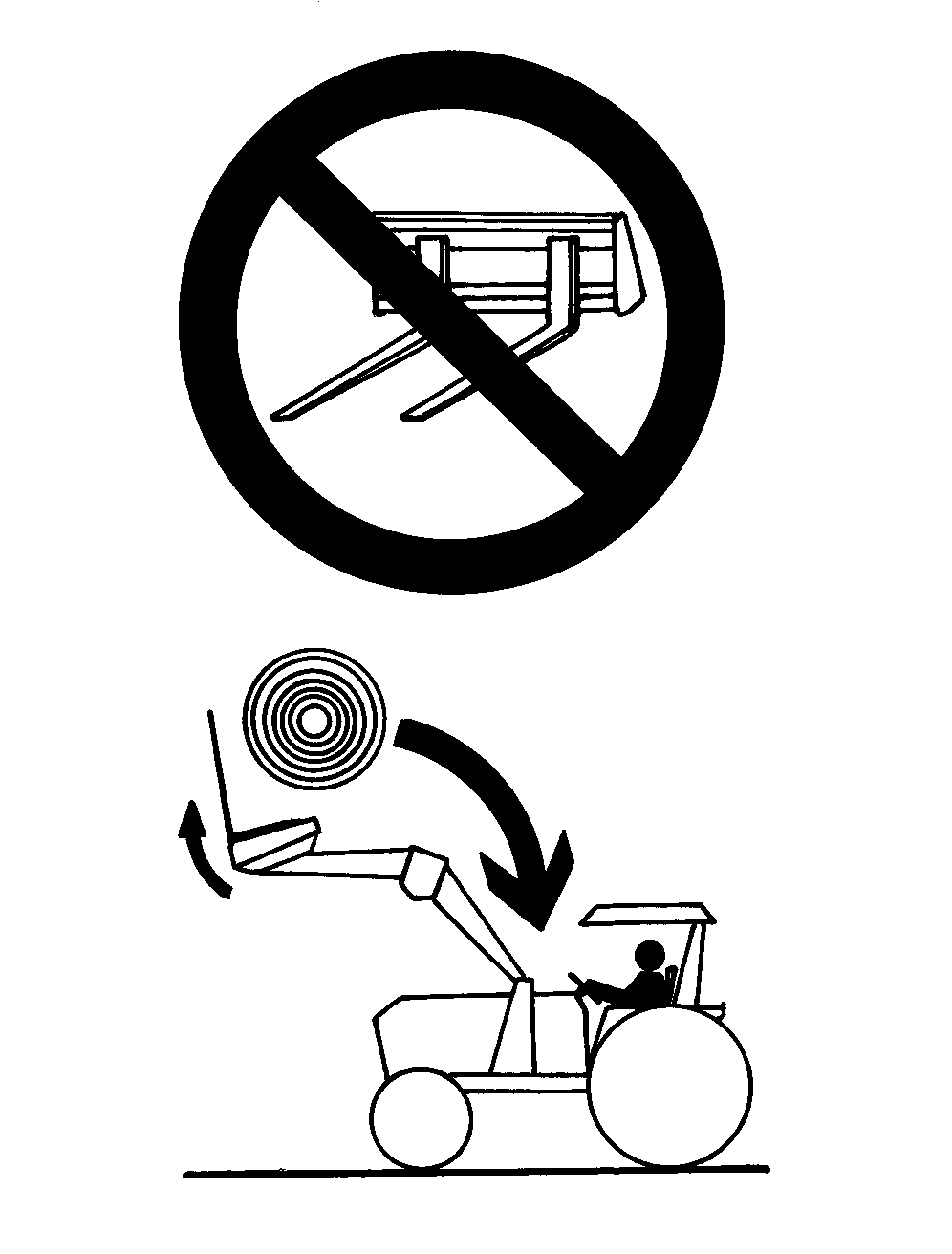

To avoid injury or death from bale rolling back down loader, do not handle round bales with the forklift.

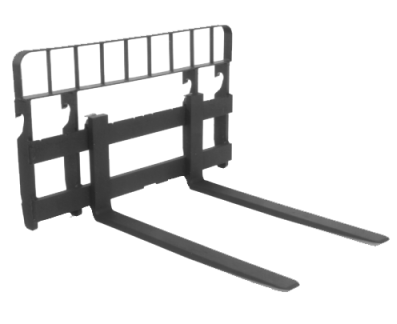

Use to move pallets, bulk bins, crates, boxes and hampers.

Forklift capacity is same as loader capacity.

Forklift dimensions:

Forklift Dimensions
mm (in.)
Tine Width 100 (4)
Tine Length 1220 (48)
Maximum Spacing (outside tines) 1400 (55)
Minimum Spacing (outside tines) 250 (10)
Spacing Increments 130 (5)
Height of Back Stop (from top of tines) 850 (33)


W02873
W02744

OUO6038,0001467 -19-17SEP01-1/1
