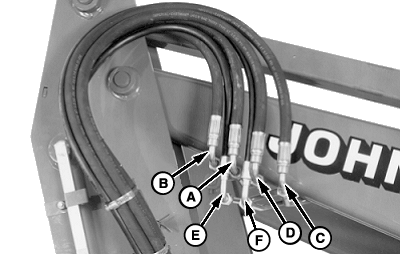

Identifying Hose Connections-Loader to Mid-Mount Couplers
NOTE:
Connections (A-D) are the same for two-function connection. Three-function shown.
8000 Series Tractor with electronic joystick; A drain manifold is used in place of coupler bracket. Coupler location and hose identification/description are the same as shown.
| Hose Connection |
Dust Plug/Cap Color |
Hydraulic Function |
| A |
Yellow |
Bucket Cylinder-Head End |
| B |
Black |
Bucket Cylinder-Rod End |
| C |
Blue |
Lift Cylinder-Head End |
| D |
Red |
Lift Cylinder-Rod End |
| E |
Orange |
Attachment Cylinder-Head End |
| F |
Green |
Attachment Cylinder-Rod End |
|
