Locking Out Multi-Function Control Lever
Multi-function control lock lever (A) allows operator to control movement needed for a particular operation or situation.
-
To allow only side-to-side movement;
Pull lock lever (A) outward (to the right) and all the way rearward as shown on decal (B).
-
To allow movement in all directions;
Move lock lever to center position as shown on decal.
-
To prevent movement in any direction;
Move lock lever all the way forward as shown on decal.
|

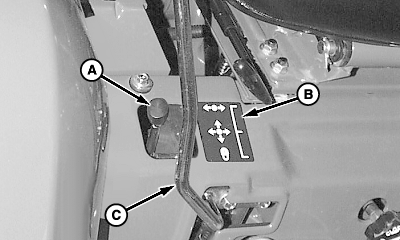

A-Lock Lever
B-Decal
C-Multi-Function Control Lever
|
