Attach Loader to Tractor

Refer to Attaching Loader section.

OUO6038,0001562 -19-14MAR02-1/2

Check Hood Guard and Latch Mechanism Alignment

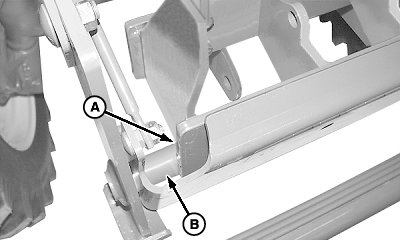

1. Tube (B) must contact and fit into notches (A) in supports along bottom of hood guard.

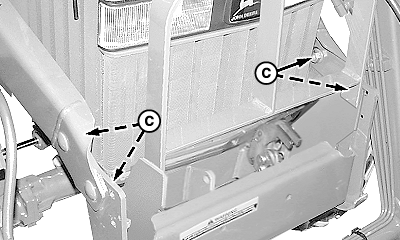

2. If tube (B) does not make contact at all points across bottom of hood guard, relieve loader pressure from hood guard and loosen two nuts (C) on each side of loader.

3. Retract lift cylinders to raise latch mechanism up into hood guard and adjust latch mechanism as necessary.

4. Tighten nuts (C) to specifications.

Specification

Nuts -Torque 225 N·m (166 lb-ft)


A-Notch
B-Tube
C-Nuts

W05247

Right-Hand Side Shown

W05248

OUO6038,0001562 -19-14MAR02-2/2
