Using Float

causym CAUTION: To help prevent personal injury caused by unintentional lowering of loader, do not use "FLOAT" position to lower loader. Loss of control results and the loader will fall to the ground due to it's own weight.

"FLOAT" position allows the loader to move up and down, following the ground contour. Use this for scraping forward on hard surfaces.

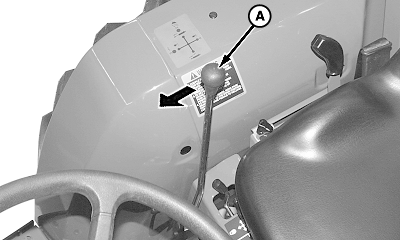

Move lever (A) fully forward, lever will lock in "FLOAT" position. Pull rearward on lever to return to "NEUTRAL".

W05146


A-Multi-Function Control Lever

OUO6038,0001571 -19-15MAR02-1/1
